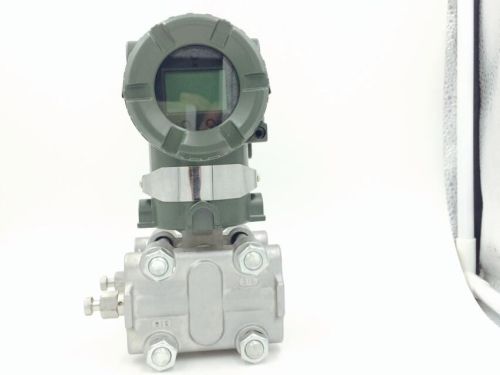

We offer differential pressure transmitter. Technical data smart pressure transmitter :
measuring range:-100kpa ~ 0-60mpa
maximum overload: 1.5 times the standard range
pressure type: gauge pressure, differential pressure
accuracy class: 0.25% f.s custom 0.5% f.s √
power supply voltage: 24vdc
load resistance: ≤ 500ω
measuring medium: steam pressure or gases, liquids
long-term stability: ± 0.2% f.s year
temperature drift: ± 0.03% fs °c
compensation temperature: -10 ~ 80 °c
working temperature: -10 ~ 100 °c (up to do 200 °c to be ordered)
case: all stainless steel body
measuring media: non-corrosive stainless steel gas, liquid
pressure connection: m20 × 1.5 or user-defined
weight: normal type 0.3kg, 0.65kg with a header type
