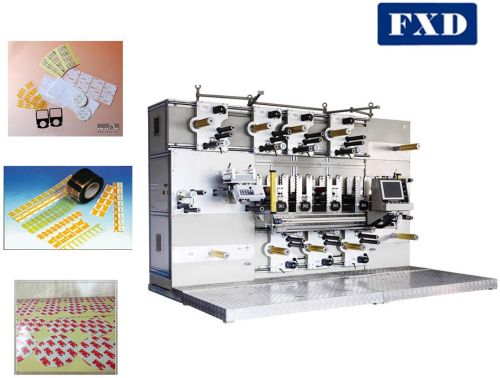

Diffuser Film Adhesive Tape Die Cutting Machine

We are offering the complete process of barcode label rotary die cutting machine including:
laminating --- die cutting --- discharging waste material --- rolling the useful material, and this process will be done repeatedly upon your product's craftship.
main features:
1: this rotary slitting and die cutting machine is suitable for deal with product in high volume.
2: two sets of tension controlling system to make sure the controlling tension depend on the habit of operator and the crafts of product.
3: the operating monitoring system, emergency switch, and safety sensor for main die-cut station to protecting the operator.
4: the computerized controlling system can store 200 craft procedure formula.
standard parameters
model
mx3-250-6d
mx5-250-10d5
mx7-250-14d5
mx8-250-16d5
mx10-250-20d5
max web size: mm
250
250
250
250
250
max speed: metermin
56
56
56
56
56
thickness of material: mm
0.025-3.5
0.025-3.5
0.025-3.5
0.025-3.5
0.025-3.5
type of material
in roll
in roll
in roll
in roll
in roll
max diameter of material: mm
φ400
φ400
φ400
φ400
φ400
number of die-set stand: pcs
3
5
7
8
10
max winding draft tension: newtonmeter
0-10
0-10
0-10
0-10
0-10
net weight: kg
980
3200
3500
4000
5000
dimension: mm
2080*1160*2250
2990*2120*2250
3630*2120*2250
3950*2120*2250
4400*2120*2250
power
380v, 3phase,50hz 9kw
380v, 3phase,50hz 15kw
380v, 3phase,50hz 21kw
380v, 3phase,50hz 24kw
380v, 3phase,50hz 30kw
number of standard shaft: pcs
6
10
14
16
20
