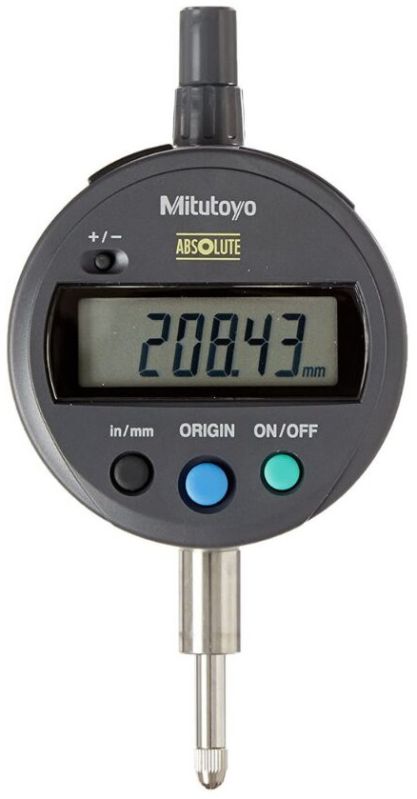

Digimatic Indicator (R)
Mitutoyo Digimatic Indicator (R) – Typical Specifications
| Measuring Range | 0–12.7 mm (0.5 "), 0–25.4 mm (1.0 "), 0–50.8 mm (2.0 ") |
| Resolution | 0.01 mm, 0.001 mm, 0.0005 mm (or 0.00005 ") depending on model |
| Accuracy | ±0.003 mm to ±0.005 mm depending on range/resolution |
| Repeatability | ±1 digit |
| Measuring Force | 1.5–2.5 N typically |
| Display Type | LCD digital display (with high-contrast digits) |
| Data Output | Yes – SPC (Statistical Process Control) via Mitutoyo Digimatic cable |
| Power Supply | CR2032 lithium battery (~5,000 hours) |
| Zero/Set Function | Yes – allows zeroing at any position |
| Preset Function | Yes – set any reference value |
| Inch/Metric Conversion | Yes (selectable models) |
| Tolerance Judgement | Some models have upper/lower limit indicators |
| Hold Function | Yes – freezes display |
| Stem Diameter | 8 mm or 3/8 " (standard) |
| Contact Point | M2.5 thread, replaceable |
| Protection Rating | IP42 to IP54 (model dependent) |
