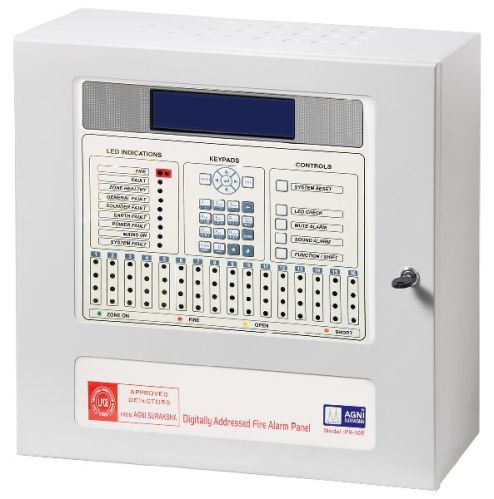

Digital Addressable Fire Alarm

Sold By : ASES Security Pvt Ltd

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

Our storage facility is laced with all the modern amenities, required for maintaining high quality of the products. Also, we upgrade it on regular intervals to meet defined industry standards. We keep the globally accepted packaging guidelines in consideration so that the products that we deliver are packed well and are safe from the external environmental factors such as shock, compression, temperature.

Features :

Advanced microprocessor based DIGITAL ADDRESSABLE fire alarm panel
2 - 32 Zone digitally addressable zones
Each zone supports 32 Adressable devices (anycombination)
Supports ASES addressable MCP Monitor Module & CZMU.
32 Character field programmable point text for each Sensor
40 X 2 Character LC Display
Networkable / Stand Alone Models
Zone wise sounder circuit
Event Logging with RTC
TCP/IP Based Remote Monitoring (Optional)
PC Based Graphic Software for easy monitoring (Optional)
Field Programming through ATX Keyboard
All Zone wiring circuits are supervised
Operates on 220V 50Hz Ac Mains Power
24V DC Stand-by with built in charger
RS 485 port for Repeater Panel
Zone isolation facility.
Zone wise fire, fault & isolation LED indication

Technical Specifications

Primary Power	AC: 180-250 VAC +/- 10%-15%, 50 Hz.
Standby Power	24V D.C (2 No's of 12V, 7 Ah battery (Max, Built in for 12Ah) Sealed Lead acid battery
Operating Condition
Operating Temperature	0 - 49 C
Relative Humidity	93 ± 2% RH (non-condensing)
Charging Circuit
Charging Voltage	27 V, ± 0.2V
Nominal Charging Current	500mA (Max).
Notification Appliance Circuits
Wiring	Class B, Style - Y
Operating normal Voltage	24 VDC
End-Of-Line Resistor	4K7, ½ watt
D.C. Output Supervised	24VDC
Signaling line Circuits
Zone	2-32 Nos
Maximum No Devices per Zone	32 Nos
Zone Current	96mA (Max)
Initiating Device Circuits
Class B Style Y Operation.
Normal operation Voltage	22-23.5 VDC.
Alarm Current	30 - 45mA
Short Circuit Current	96mA Max
Zone resistance	110 Max
End-Of-Line Resistor	4K7, 1/2 watt
Standby Current	240mA (200mA for Detectors)
