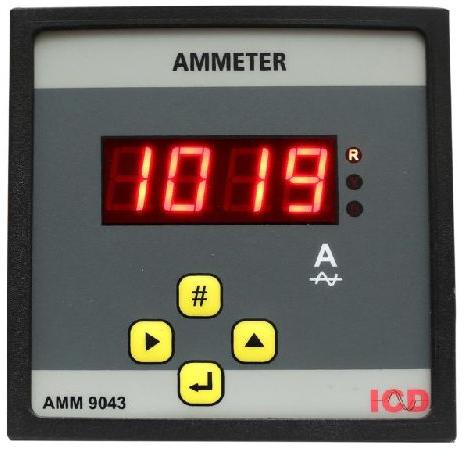

Digital Ammeter

Digital Ammeter AMM 9043 new approach to develop panel metering in sub stations, Distribution panels , Genset Panels, Pumps, Motors, Compressors and Individual Equipments, Control panels and Test benches and much more.

Benefits

• Microcontroller based design
• True RMS measurement
• 3 phase Current readings in a single meter
• CT Primary current & secondary current (5A/1A) selection through keypad
• Accurate under Harmonic conditions
• 4 digit 0.5" 7 segment Red LED
• R, Y, B current display selection by push button
• Phase indication by LEDs
• Accuracy +/-1% on reading +1 LSD
• Accuracy +/-0.5 % on reading +1 LSD (Optional)
• Current Resolution (1A up to 1000A / 0.01KA above 1000A)
• Auxiliary supply 90-270V AC/DC
• 96(H) x 96(W) x 45(D) mm
• Poly carbonate enclosure
• Panel Mounting
