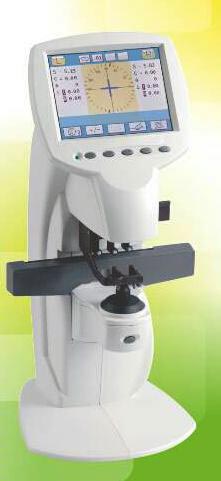

Digital Auto Lensmeter

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We are a renowned Manufacturer and Supplier of Digital Auto Lensmeter from New Delhi, India. The Matronix Digital Auto Lensmeter, offered by us, is stylish, elegant and compact in design. Our....

View More Details

Send Enquiry

Product Details

We are a renowned Manufacturer and Supplier of Digital Auto Lensmeter from New Delhi, India. The Matronix Digital Auto Lensmeter, offered by us, is stylish, elegant and compact in design. Our Lensmeter is fabricated by our team of professionals using ultra-modern technologies and latest machines. Our Lensmeter has the ability to automatically identify the type of lens. Buyers are free to place bulk order of Auto Lensmeter and we will ensure timely deliveries.
Matronix
SLK 5600 (Big Screen)
Features of Auto Lensmeter

The ISO Standard green Led Measurement light, wavelength of 545nm, measurement of lens no need any number of setting abbe, make measurement more rapid, stable and accurate.
The measurement of cluster area, so that access 10 data more accurate and reliable.
Automatically identify the type of lens, and automatically switch measurement mode, more convenient measurement of multi-focal lens.
Accurately measure color lens with transmittance of 10%
Mignont, stylish, elegant

SLK 5600 Auto Lensmeter

Sphnre kns	-25.00D + 25.00D (steps 0.01D/0.06D/0.12D/0.25D)
Content lens	-25.00D - 125.00D (BC - 6.00 ~ 9.00) (Steps 0. 0D/0.06D/0.12D/0.25D)
Cylinder	0.00D - +10.00D (-, +/-+) (Steps 0.01D/0.06D/0.12D/0.25D)
Axis	0 - 180 (Steps 1")
Add	0.0D ~ + 10.00D (Add, Ad2, ad3) (Steps 0.01 D/0.06D/0.12D/0.25D)
Prism	0.00 - 15.00 (Steps 0.01)
UV penetrability	No
PD measure	No
Lens diameter	15MM ~ É¸100 MM
LCD Screem	5.6 TFT color Lcd Screen
Dot method	Ink Box
Printing	No
Digital Connector	Rs-232C
Power Supply	AC220V / 50Hz
Max Power	40W
Weight	3.6 kg
dimension	194(W) x 210(D) x 408 (H) Mm

Technical Specifications

Sphere	Cylinder	Add	Prism	PD	UV	Accuracy
Range : +25D	Range : +10D	Range : +10D (Add 1, Add2 & Prog.)	0A to 15A	40mm-80mm (binocular)	1%-100%	Sph & cyl. : Min +/-0.06-Max +/-0.25; Prism Min 0.1 – Max. 0.3
Step : 0.01/0.06/0.12/0.25D Spectacle & contact lense with CLBC=6.00-9.00	Step : 0.01/0.06/0.12/0.25D	Step : (0.01/0.06/0.12/0.25D)	(horizontal, vertical : X-Y)	Accuracy : 0.5mm	Step : 1%, 5%
	Axis : 0-180 Step : 1		Step : 0.01
	Axis : 0-180 Step : 1		Base mode : P-B : A,

Measurement Features : Auto derection and measurement of progressive power lens, automatic additon power measurement including multifocal lenses, CYL mode conversion function (+, -& +/-) compensation of high index lenses.

Measureable lens diameter	Measuring time	Measurable transmittanc	Wave length & measuring method
20mm to 100mm	0.1 Sec + 10% (minimum)	10% and over (20% & over for 15.0 D to + 25.0D)	545 nm (green LED) more than 100 points culster through nose piece.

Other Important Hard ware specifications

Display	Printer	Marking system	Dimensions & weight	Power supply consumption
4.7" Hi-resolution full graphic color LED monitor with back light	High-speed thermal printer	Pre-filled ink cartridge type pen (more than 42000 impressions)	W x D x H in mm 194 x 210 x 408 weight 3.6 kg	110v to 240 v AC +10% 50/60Hz Consumption : 40Va (max)
Standard Accessories : Dust Cover (x1), power cord (x1), contact lens nosepiece (x1), operation manual, printing paper roll (x1).
