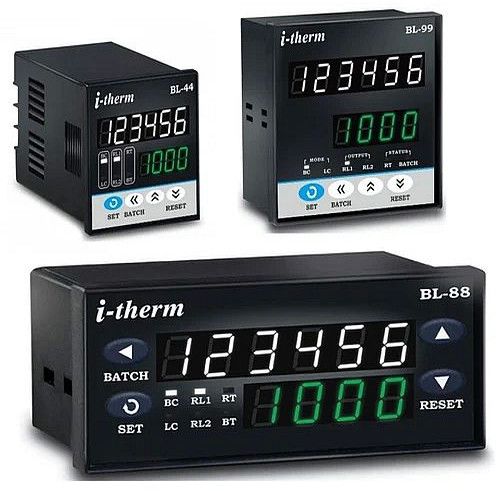

| Description | Batch / Length / Preset Counter | |
| Display | Height & Colour | 0.39' White & 0.39' Pure Green |
| No. of Digits | 6 Digits Upper Row | |
| 4 Digits Lower Row | ||
| LED Indication | (1) Mode (BC/ LC/ PC) | |
| (2) Output (RL1, RL2) | ||
| (3) Status (Batch/ AR) | ||
| Count Setting | Through Keyboard | |
| Input Specification | ||
| Control Input | Count | Proximity S/W (PNP/NPN) |
| Potential Free Contact | ||
| Reset | Front Switch & Remote Reset | |
| Sensor Supply | 12 VDC @ 30mA SCP | |
| Output Specification | ||
| Output | Relay | 5A @ 250 VAC/ 30VDC |
| SSR Drive | 12 VDC @ 30mA | |
| General Specification | ||
| Supply Voltage | 90 - 270 VAC/ DC | |
| (24 VDC on Request) | ||
| Temperature And Humidity | Operating: 0-50°C | |
| Storage: -20° to 75°C | ||
| 95% RH (Non-condensing) | ||
| Dimensions in mm (H x W x D) | 48 x 96 x 53 | |
