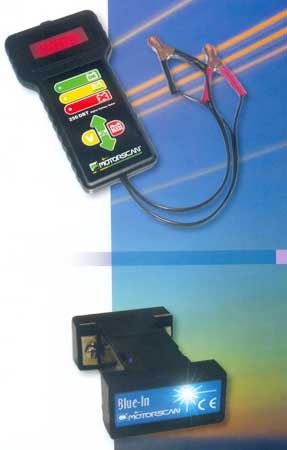

Digital Battery Tester

12 V DIGITAL BATTERY TESTER FUNCTIONS

Battery test

Starting system test

Recharging system test: TETECHNICAL FEATURES

Power supply: 12 V

Width: 120 mm

Height:215mm

Depth: 2B mm

Weight: 350g
10005 USB/RS232 ADAPTOR It allows the connection of diagnostic units equipped by or serial port only to PC exclusively provided with USB port.
KIT BLUETOOTH Blue-In 10001/96 Kit Bluetooth 9600 baud rate Blue-In. 1 0001/192 Kit Bluetooth 19200 baud rate TECHNICAL FEATURES:-

Mains Voltage: + 5 Vdc

Power Consumption: 70 mA

Max distance in open space: 100 m

Baud rate: 9600,N,B.1 or 19200,N.B.1

Dimensions: 5B x33 x 16 mm

10001/96 connectable to items: B020, 9010. 700NET, B040. B050,B060, B070,B071,9011

10001/192 connectable to items: 5BOO, 5B20, 5B21 For a correct working also the dongle for the PC Blue-Out mod. 10000 is available. KIT BLUETOOTH FOR PC 10000 is equipped with:-

USB keys,

CD with the software necessary for the operation, . Detailed instructions for a correct installation

Operating system: Windows 9B II edition or following . Max distance in open space: 100 m.
