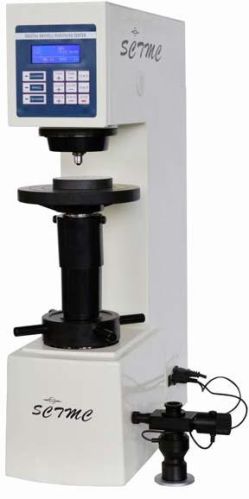

Digital Brinell Hardness Tester

The Digital Brinell Hardness Tester, offered by us stand out of all others right from quality, preciseness and reliability. We are a renowned Manufacturer and Supplier of Digital Brinell Hardness Tester from Malaysia. We make use of quality tested raw materials for their production in order to enhance its performance. Our Hardness Tester is reasonably priced!
More about the Digital Brinell Hardness Tester :

• Brinell hardness test is mainly used in hardness measurement for cast iron, steel products, nonferrous metals and soft alloys, etc. Besides it can be also used in hardness measurement for some non-ferrous materials, such as plastics, Bakelite, etc. It is applicable to factory, workshop, laboratory, university and college, and scientific research institution.

• The digital Brinell hardness tester is to use a steel ball of a certain diameter to press on the substance surface to be tested with specified test force. Through the specific time of holding test force, remove it and measure the diameter of the indentation of the specimen surface with reading microscope. Take the two points d1 and d2 and input them and on the LCD screen appears the Brinell hardness value.

Technical Specifications :

• Test Force ：

  • 612.9N (62.5kg)          4903N (500kg)
  • 980.7N (100kg)           7355N (750kg)
  • 1226N (125kg)           9807N (1000kg)
  • 1839N (187.5kg)        14710N (1500kg)
  • 2452N (250kg)          29420N (3000kg)

• Hardness Measurement Range ： 8～650 HBW

• Amplification of Reading Microscope ： 20 times

• Minimum Division Value of Micrometer Drum Wheel ： 0.00125mm

• Maximum Height of Sample ： 220mm

• Distance from Indenter’s center to instrument Body ： 135mm

• Voltage of Power Source ： AC220V/50Hz

• Dimension (L×W×H) ： 753*550*236mm

• Weight ： 123kg

• Model MHB-3000 Digital Brinell Hardness Tester one
