STIPL Electric Digital Bursting Strength Tester, Automation Grade : Automatic

₹ 1 - ₹ 10,000 / Piece

Driven TypeElectric
Brand NameSTIPL
Automation GradeAutomatic
Country of OriginIndia
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 2 Years
Nature of Business Manufacturer
GST No. 09AAQCS9142J1ZM

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Driven TypeElectric
Automation GradeAutomatic
Country of OriginIndia
Accuracy± 1% of the Readout Value
Brand NameSTIPL
Specimen Clamp Upper Part (Board)31.5 mm +/- 0.05 mm
Clamping TypePneumatic Clamping
Specimen Clamp Upper Part (Paper)30.48 mm +/- 0.05 mm
Measuring ResultsIndividual Burst Strength , Burst Factor
Measuring Range0-40KG/cm2 or Required Pressure Gauge
Specimen Clamp Lower Part (Paper)33.10mm +/- 0.05mm
Flow Rate95.10 cc/min
Specimen Clamp Lower Part (Board)31.5mm +/- 0.05mm

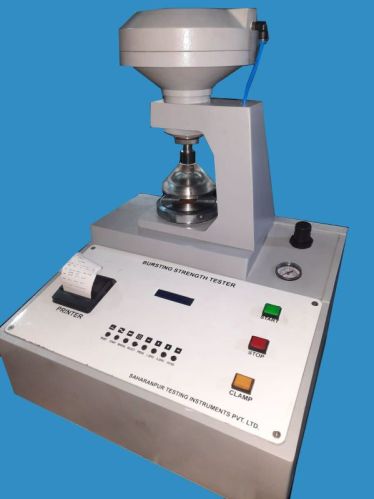

Device Description : the Burst Tester is built on a sturdy aluminum frame and the results are displayed on a digital load indicator . the Burst tester works according to Mullen principle . A piston pumps glycerin under the circular elastic diaphragm. The diaphragm bulges and distorts the sample, which is clamped around the periphery around the clamping bell. Pressure is increased until the sample is burst.

Test Description : It is measured by giving a hydraulic pressure through a rubber diaphragm on a circular area of the specimen of CBF under test conditions. Force requires to burst or complete rupture of the Paper/ board is measured visually. The bursting strength value is expressed in terms of kgs/cm2. The bursting strength defines the materials quality compare to the others. The value of the bursting strength will give the indication that how much weight may be carried in the Paper/box.
