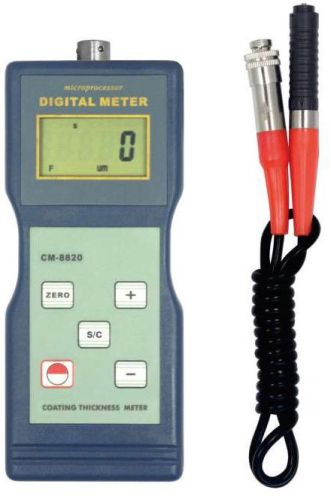

Digital Coating Thickness Gauge(F Type) CM-8820 161 x 69 x 32mm

Digital Coating Thickness Gauge(F Type) CM-8820

1.Spec:

Widely used to measure the thickness of non-magneticmaterials(e.g.paint,plastic,porcelain enamel,copper.zinc,aluminium,chrome etc.)on magnetic materials(e.g.iron,nickle etc.). Often used  to  m easure the thickness of plating layer,lacquer layer,p orcelain enamel layer, phosphide layer, coppertile , aluminiumtile, some alloy tile,paper etc.

2.Features:

* It meets the standard of ISO2178. Suitable for the laboratory amd for use in harsh field conditions.

* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.

* Wide measuring range and high resolution.

* Digital display gives exact reading with no guessing or errors.

* The use of durable,long-lasting compone-nts,including a strong,light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortably in either hand.

3.Specifications:

Display: 4 digits , 10mm LCD

Principle: F Magnetic Induction

Range: 0 ~ 2000µm / 0 ~ 80 mil

Resolution: 0.1µm (0 ~ 99.9µm)

                   1µm (over 100µm)

Accuracy: ±5%n or 5.0µm

Operating Condition: Temp: 0 ~ 40°C; Humidity: < 80%

Power supply: 4 x 1.5 AA(UM-3) battery

Size: 161 x 69 x 32mm

Weight: About 260g (including batteries)

Standard Accessories: Mian Unit, Probe (F Type), Calibration Base (F), Calibration Foils, Carrying Case, Operation Manual
