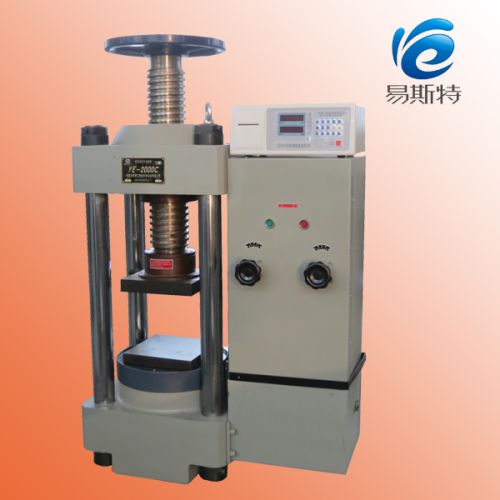

Digital Compression Testing Machine, Brand Name : EAST

We are offering digital compression testing machine.
Model ye-2000c
(kn)maximum test force
2000
testing space
(mm) upper and lower plate dimensions
240×240
(mm) maximum distance of upper and lower plate
420
(mm) distance between upright
370×270
(kn) & (kngrid)
measuring rang & minimum division value
0-2000
0.1
maximum magnitude for relative error of indicating value
±1.0%
maximum permissible value of relative variable of displaying value
1%
maximum permissible value of process and reverse relative error of displaying value
1.5%
load keeps for 30 seconds, the variable of displaying value does not exceeds the largest testing force
0.5%
(mm)working piston travel
50
(mm)external dimension(l×w×h)
main body
850×500×1480
dynamometer
750×630×600
(kw) motor power
0.75
(kg) net weight
700.
