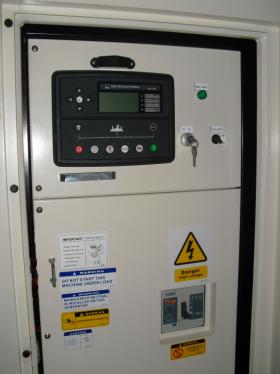

Digital Control Panel

DSE controller

Engine Control

• Start preparation (preheating or prepublication)
• Start/stop sequences with selectable number of start attempts
• Fuel solenoid selection (coil type)
• Idle speed control
• Local of remote start/stop
• Stop sequence with cooling down
• Running speed detection selectable
  - Generator Hz/V
  - Charger alternator input (W terminal)
  - Binary input (D+)
  - Oil pressure

Generator Protection (ANSI)

• Over-/under voltage
• Over-/under frequency
• Over current
• Reverse power
• Voltage unbalance
• Phase sequence error

Clear Text Display

• 128 x 64 pixel backlight STN
• Graphic symbol messaging
• Clear text alarm messages
• Clear text diagnostics for both hardwired inputs and CAN bus messages (J1939)
• Log book holding 150 log entries
• Real time clock for time and date

Generator Monitoring

• 3-phase or single phase generator monitoring
  - Voltage /current /frequency /power /reactive power

DSE 7320 / 7420

• Microprocessor control, with high stability and credibility
• Mains supply and generator operation monitoring
• Indicating operation status and fault conditions
• Multiple protections; multiple parameters display, like pressure, temp.
• Manual and automatic work mode selectable
• Real time clock for time and date display, overall runtime display, 99 log entries
• Overall power output display
• Integral speed/frequency detecting, telling status of start, rated operation, over speed
• Communication with PC via RS485 OR RS232 interface, using MODBUS protocol.
