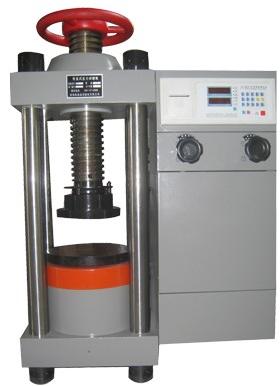

Digital Display Concrete Compression Testing Machine(Economic Model) YES-2000

YES-2000 Digital Display Concrete Compression Testing Machine(Economic Model)
1. Main functions &characteristics:
1) Function: This machine can be used to test compression strength for tiles, cement and concretes and other materials and completely fulfill the standard Test Method of Mechanical Property for Common Concrete (GB/T50081-2002) and Test Regulation of Cement and Concrete for Road Engineering.
2) Characteristics: This machine has compact structure, adopting high precision sensor to measure test force with stable indicating value. Digital display test force and loading speed, load peak hold, test results print.
2. Main technical specifications:
1) Max. test force: 2000KN;
2) Measuring range of test force: 2%-100%FS;
3) Accuracy of indicating value: ±1%;
4) Max. Compression space (mm): 0-320mm;
5) Effective width between two columns (mm): 360;
6) diameter of upper and lower platens (mm): 300;
7) Max. piston stroke: 40mm;
8) Loading rate: 0-40KN/s, adjustable;
9) Dim. of main machine (L*W*H) (mm): 820*550*1300mm;
10) Power supply: 380V±10%, 50Hz;
11) Power (kw): 1.5;
12) Weight: about 650kg.
