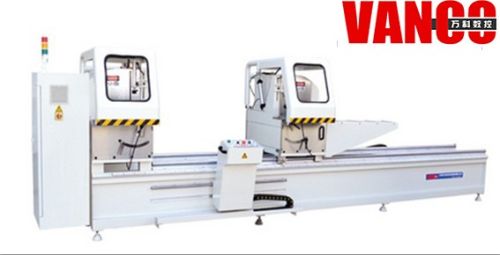

Digital Display Double Head Precision Cutting Saw

We offer digital display double-head precision cutting saw for aluminum profile ljz2x-500*4200
features:
1. Italy digital display system.
2. Cemented carbide saw blade with high precision and durability.
3. High precision principal axis ensures stable running.
4. Air and hydraulic cylinder ensures the stable speed adjusting and saw blade working.
5. Linear bearing system in moving and feeding device ensures the accuracy of machine running, cutting and stable performance.
6. Automatic angle cutting can be changed in 45° and 90°.
7. Protective cover open and close automatically ensures the safe operation of man working.
8. Digital readout type ensures accurate sizing and perceptual intuition.
Technical parameter:
power supply: 380v50hz, three-phase five-wire
motor power: 4.4kw
operation air pressure: 0.5~0.8mpa
air consumption: 0.2m³min
saw blade standard: φ500mm*φ30mm*4.4mm*120t
motor revolving speed: 3400rmin
cutting length: 400~4200mm (double heads 90o)
error in length: ≤0.1mm
cutting angle: 45°, 90° (others angles are optional)
angle error: ≤5′
cutting width: 190mm (90° max)
cutting height: 390mm (90° max)
dimension: 5530mm (l) *1750mm (w) *1950mm (h)
weight: 1850kg.
