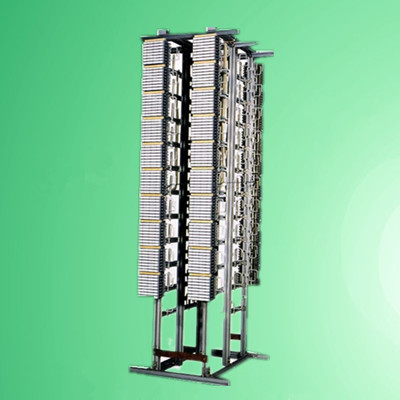

Digital Distribution Frames, Brand Name : OST

Get Latest Price

MOQ5 Set(s)
Brand NameOST
Insulation resistance≥1000MΩ（500VDC）
Characteristic impedance120Ω
Terminal contacting resistance≤0.5mΩ
Supply TypeManufacturer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Wuxi Orient Rising Sun Telecom System Equipment Co., Ltd

China

View Number

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 1999

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Brand NameOST
Characteristic impedance120Ω
Work rate2Mb/s
Dielectric strength≥1000VAC（50Hz）/min(No breakdown, no arc)
The contact resistance between leaves≤4mΩ
Loop between crosstalk ratio≥60dB（50KHz～3.1MHz）
Insulation resistance≥1000MΩ（500VDC）
Terminal contacting resistance≤0.5mΩ

we offer Digital Distribution Frames.
Features:
1.The frame adopts aluminum high intensity profile structure and special surface, good outer
appearance;
2.Suitable for large, medium exchange;
3.120Ω unit two-sided installation, a terminal exchange cable, on the other a formed cable transmission equipment, the jumper connection;
4.The connecting piece used a variety of structural design of the connection, need not be installed in the perforated aluminum profile.
