Digital ECG Machine, Brand Name : neurocare

We are offering digital ecg machine.

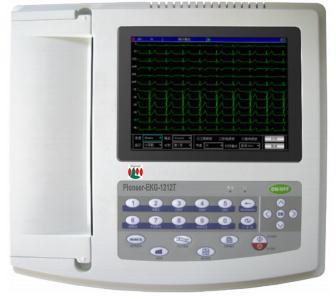

12channel ecg machine with 8 inch touch and color screen,multi-language report formats pioneer ekg 1212t has large capacity (1000 exam),12 leads ecg simultaneous acquisition,digital signal processor,built in battery and acdc power supply
features
8" tft color screen
210 mm thermal paper printing
support chinese, english, spanish and turkish operating interface, can print out multi-language report formats
include multiform printing speeds such as 5mms, 6.25mms ,10mms, 12.5mms, 25mms, 50mms. Provide graphic result format for visual diagnostic
a4 paper direct print (connect with printer)
it has build-in storage with large capacity,1000 exam
12 leads ecg simultaneous acquisition, digital signal processor, ã��ã�â ac filter, baseline filter and emg filter of the ecg signals
simultaneous display of 3612 leads ecg waveform, and the state of printing mode, sensitivity, speed, filter etc, to be easy for interpretation
include multiform printing modes and formats, such as 12,6+1(rhythm),6 rhythm 12 rhythm 10 rhythm 8 rhythm 6 manual freeze etc;
the length of wave printing can be adjusted and the function of periodic printing is included to satisfy different applications
the instrument has the function of regular auto-analysis and auto-interpretation of ecg waveform parameter, provide measurement
parameters such as hr, p-r interval, p duration, qrs duration, t duration, q-t interval, q-tc, p axis, qrs axis, t axis, r(v5), s(v1), r(v5)+s(v1), etc
auto-interpretation conclusion to help reducing doctor's abundance and improve working efficiency
acdc power supply includes both.
specification
environment conditions
operation
a) environment temperature: +5
b) relative humidity: 80
c) power supply: ac:100v~240v,5060hz
dc:14.8v, 3700 mah rechargeable lithium battery
d) atmospheric pressure: 86kpa~106kpa
transportation and storage
a) environment temperature: -1055
b) relative humidity: 95
c) atmospheric pressure: 50kpa~106kpa
input way: floating and defibrillation protection
lead: standard 12 leads
patient leak current: 3.2s
cmrr: >60db, >100db( adding filter)
emg interference filter: 35hz(-3db)
recording way: thermal printing system
specification of recording paper: 210mm(w)*20m(l) high-speed thermal paper
paper speed:
auto record: 25mms, 50mms, error:5
rhythm record: 25mms, 50mms, error:5
manual record: 5mms, 6.25mms, 10mms, 12.5mms, 25mms, 50mms, error:5
sensitivity selections: 2.5,5,10,20,40mmmv, error: 5. Standard sensitivity is 10mmmv 0.2mmmv.
Auto record: record setup according to auto record format and mode, automatically changing leads, measuring and analysing.
Rhythm record: record setup according to rhythm record format and mode, automatically measuring and analysing.
Manual record: record setup according to manual record format, manually changing leads.
Measurement parameters: hr, p-r interval, p duration, qrs duration, t duration, q-t interval, q-tc, p axis, qrs axis, t axis, r(v5), s(v1), r(v5)+s(v1)
product safety type: class I cf applied part; there is defibrillation and pacing protection circuit in it.
Enduring polarization voltage: 300mv
noise level: 15 vp-p
fuse specification: 2 pcs 5*20mm ac time lag.
Size: 340mm(l)*320mm(w)*85mm(h)
net weight: 3.2kg
features
8" tft color screen
210 mm thermal paper printing
support chinese, english, spanish and turkish operating interface, can print out multi-language report formats
include multiform printing speeds such as 5mms, 6.25mms ,10mms, 12.5mms, 25mms, 50mms. Provide graphic result format for visual diagnostic
a4 paper direct print (connect with printer)
it has build-in storage with large capacity,1000 exam
12 leads ecg simultaneous acquisition, digital signal processor, ac filter, baseline filter and emg filter of the ecg signals
simultaneous display of 3612 leads ecg waveform, and the state of printing mode, sensitivity, speed, filter etc, to be easy for interpretation
include multiform printing modes and formats, such as 12,6+1(rhythm),6 rhythm 12 rhythm 10 rhythm 8 rhythm 6 manual freeze etc;
the length of wave printing can be adjusted and the function of periodic printing is included to satisfy different applications
the instrument has the function of regular auto-analysis and auto-interpretation of ecg waveform parameter, provide measurement
parameters such as hr, p-r interval, p duration, qrs duration, t duration, q-t interval, q-tc, p axis, qrs axis, t axis, r(v5), s(v1), r(v5)+s(v1), etc
auto-interpretation conclusion to help reducing doctor's abundance and improve working efficiency
acdc power supply includes both
specification
environment conditions
operation
a) environment temperature: +5+35
b) relative humidity: 80%
c) power supply: ac:100v~240v,5060hz
dc:14.8v, 3700 mah rechargeable lithium battery
d) atmospheric pressure: 86kpa~106kpa
transportation and storage
a) environment temperature: -1055
b) relative humidity: 95%
c) atmospheric pressure: 50kpa~106kpa
input way: floating and defibrillation protection
lead: standard 12 leads
patient leak current: 3.2s
cmrr: >60db, >100db( adding filter)
emg interference filter: 35hz(-3db)
recording way: thermal printing system
specification of recording paper: 210mm(w)*20m(l) high-speed thermal paper
paper speed:
auto record: 25mms, 50mms, error:5
rhythm record: 25mms, 50mms, error:5
manual record: 5mms, 6.25mms, 10mms, 12.5mms, 25mms, 50mms, error:ã��ã�â±5%
sensitivity selections: 2.5,5,10,20,40mmmv, error: 5. Standard sensitivity is 10mmmv 0.2mmmv.
Auto record: record setup according to auto record format and mode, automatically changing leads, measuring and analysing.
Rhythm record: record setup according to rhythm record format and mode, automatically measuring and analysing.
Manual record: record setup according to manual record format, manually changing leads.
Measurement parameters: hr, p-r interval, p duration, qrs duration, t duration, q-t interval, q-tc, p axis, qrs axis, t axis, r(v5), s(v1), r(v5)+s(v1)
product safety type: class I cf applied part; there is defibrillation and pacing protection circuit in it.
Enduring polarization voltage: 300mv
noise level: vp-p
fuse specification: 2 pcs 20mm ac time lag.
Size: 340mm(l)*320mm(w)*85mm(h)
net weight: 3.2kg.
