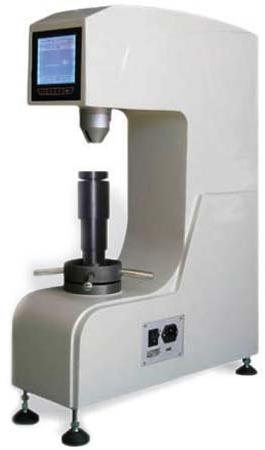

EHR-500 Automatic Rockwell Hardness Tester, For Industrial Use

₹ 4 Lakh - ₹ 4.50 Lakh / Unit

Frequency50Hz
Automatic GradeAutomatic
CertificationISO 9001:2008 Certified
Temperature CapacityMedium Temperature
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Number Of FlowerDigital Tester
CertificationISO 9001:2008 Certified
ApplicationIndustrial Use
FeatureEasy To Use, Electrical Porcelain, Four Times Stronger, Proper Working, Superior Finish, Water Proof
ConditionNew
Frequency50Hz
Automatic GradeAutomatic
Operating CurrentSingle Phase
Warrenty1year
Temperature CapacityMedium Temperature
Brand NameENKAY

We bring forth the best quality EHR-500 Automatic Rockwell Hardness Tester at market-leading prices. Based in Delhi, we are one of the eminent Manufacturers, Exporters and Suppliers of EHR-500 Automatic Rockwell Hardness Tester. Intricately designed using the best quality raw materials, the Hardness Testers we provide passes various quality tests under the supervision of our experts. We provide the testers in high-grade packaging and ensure delivery within the given time period.
Highlights : EHR-500 can be used directly to measure Rockwell hardness and plastic Rockwell hardness, and it can change the value of Rockwell hardness into HB, HV, HLD, HK and b value.
Features :

High measuring precision
Wide measuring range
Automatic test force
Changing according to the scales
Automatic main test force loading/unloading
Measuring results digitally display and automatic printing
Communicating with external computers and etc.
The Tester is suitable for the hardness testing of carbon steel, alloy steel, cast iron, non ferrous metal, engineering plastic and etc.

Details

Total test force	F 588.4N(60kgf), C980.7N(100kgf), C1471N(150kgf),
Scales	HRA, HRB, HRC, HRD, HRE, HRF, CHRG, HRH, HRK, HRL, HRM, HRP
Load cycle	3~8s
Load dwell duration	2~50s
Resolution	0.1HR
Display	High definition backlight LCD
Operation	Menu selectable, Membrane keypad
Auxiliary functions	Upper/lower limits setting & alarming, Data , statistics, Avg., Max., Min., S, R, Scale conversion, HV, HB, Ãb, Curved surface, correcting automatically
Data output	RS-232/USB data output to printer or PC
Memory	Max 500 items of test results stored automatically
Testing space	200mm in vertical, 165mm in horizontal
Dimensions	550mmx200mmx720mm
Power supply	single phase, AC, 110V, 50~60Hz, 4A
Net weight	100kg
