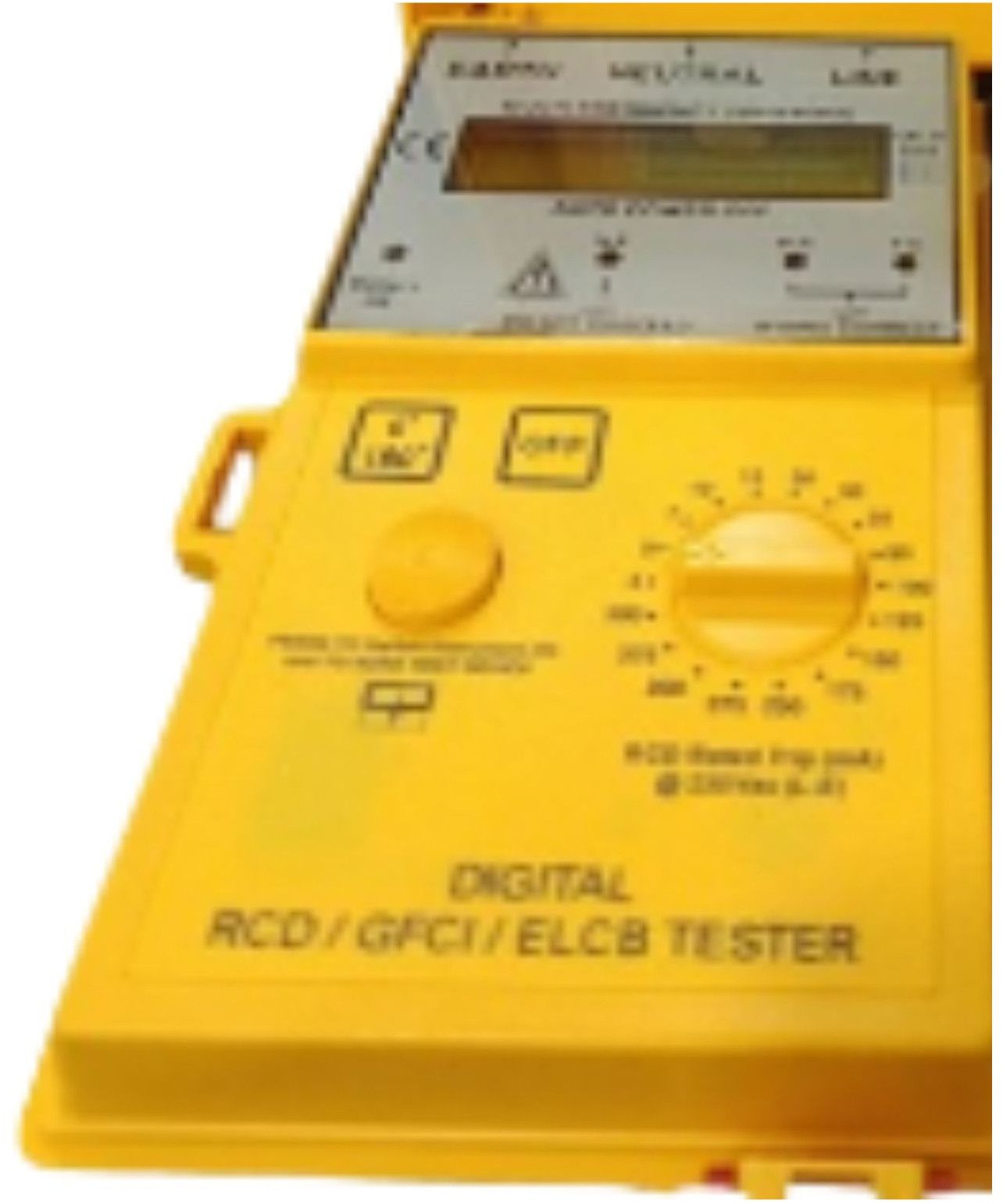

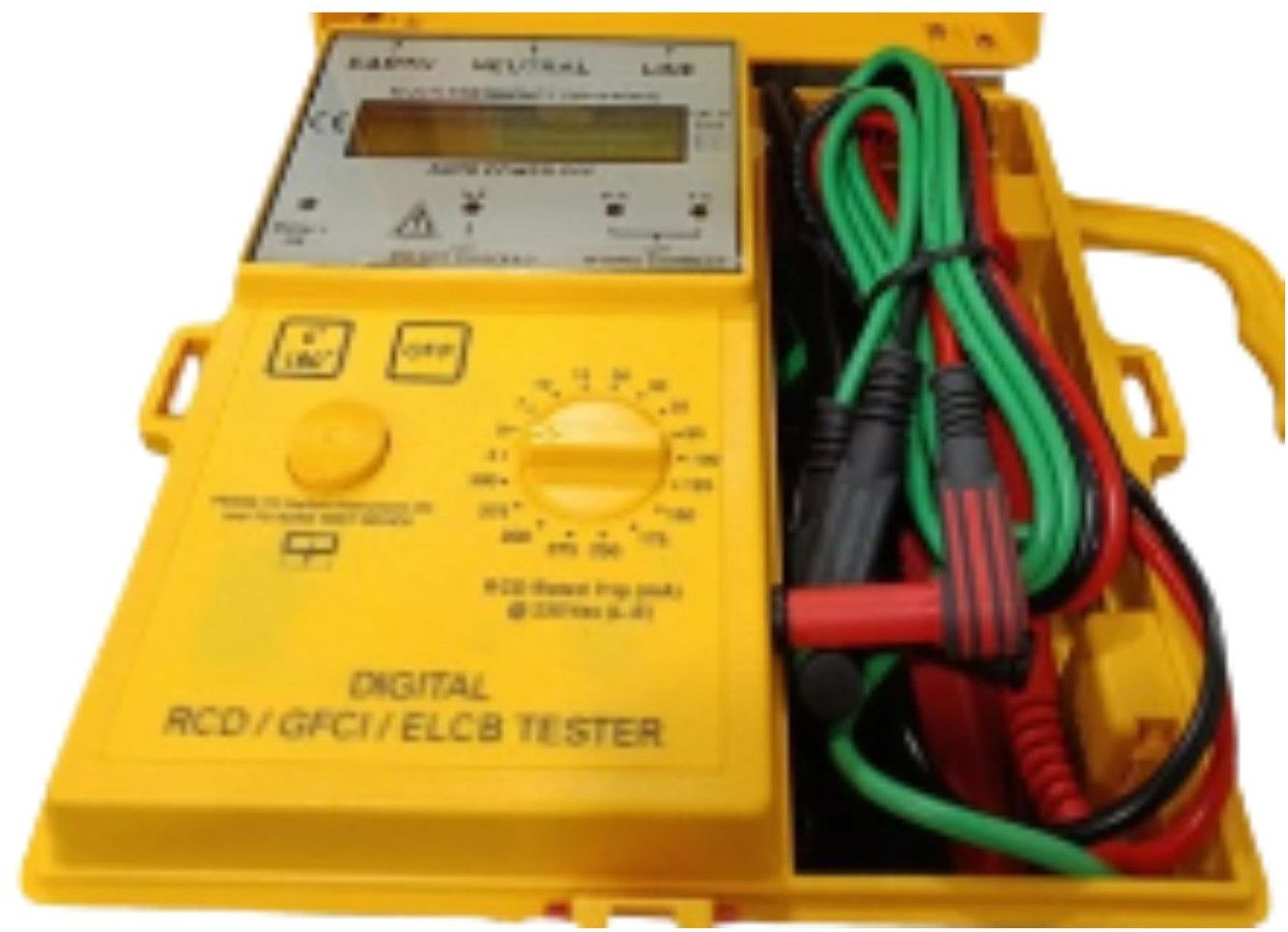

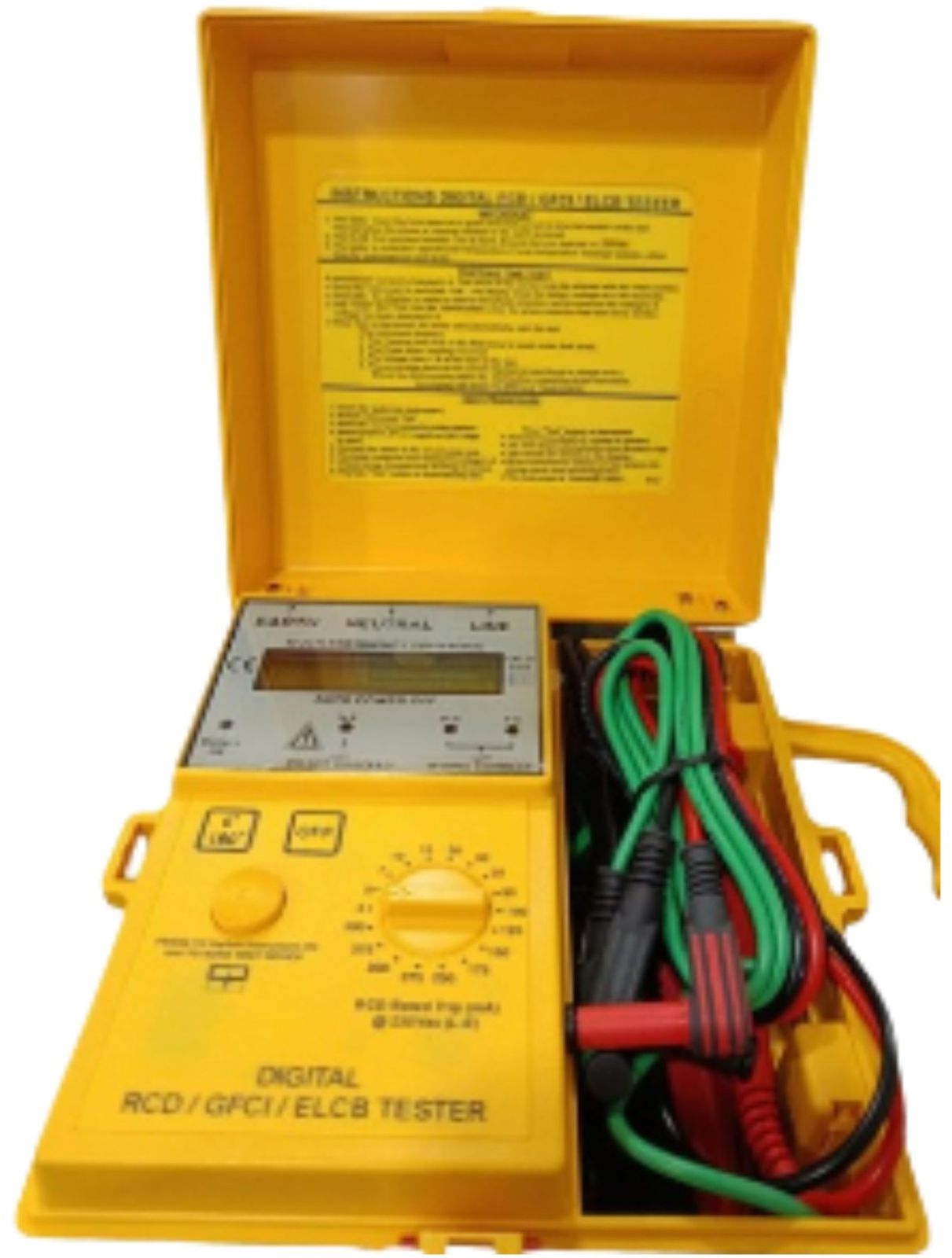

Battery Digital Elcb Tester

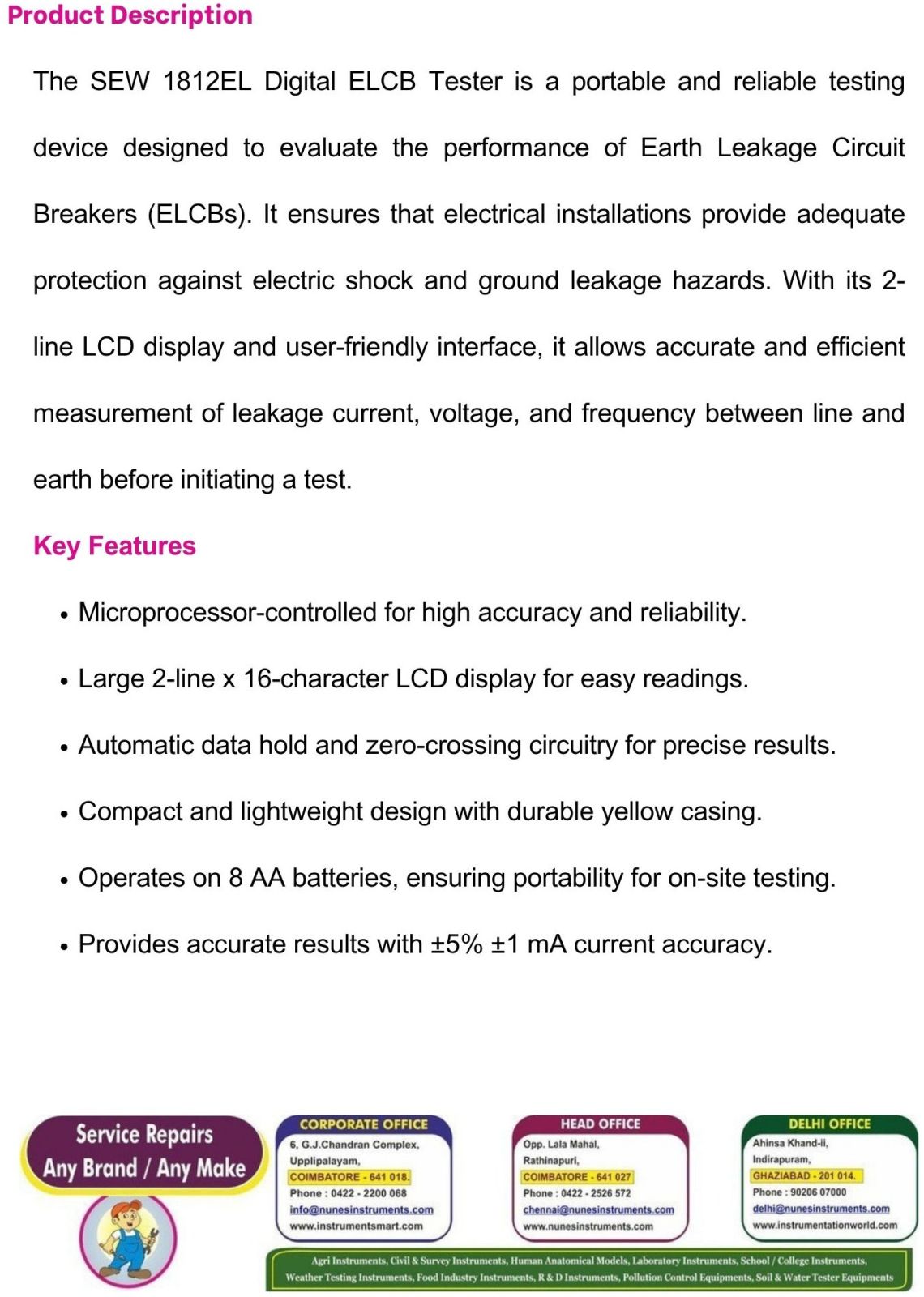

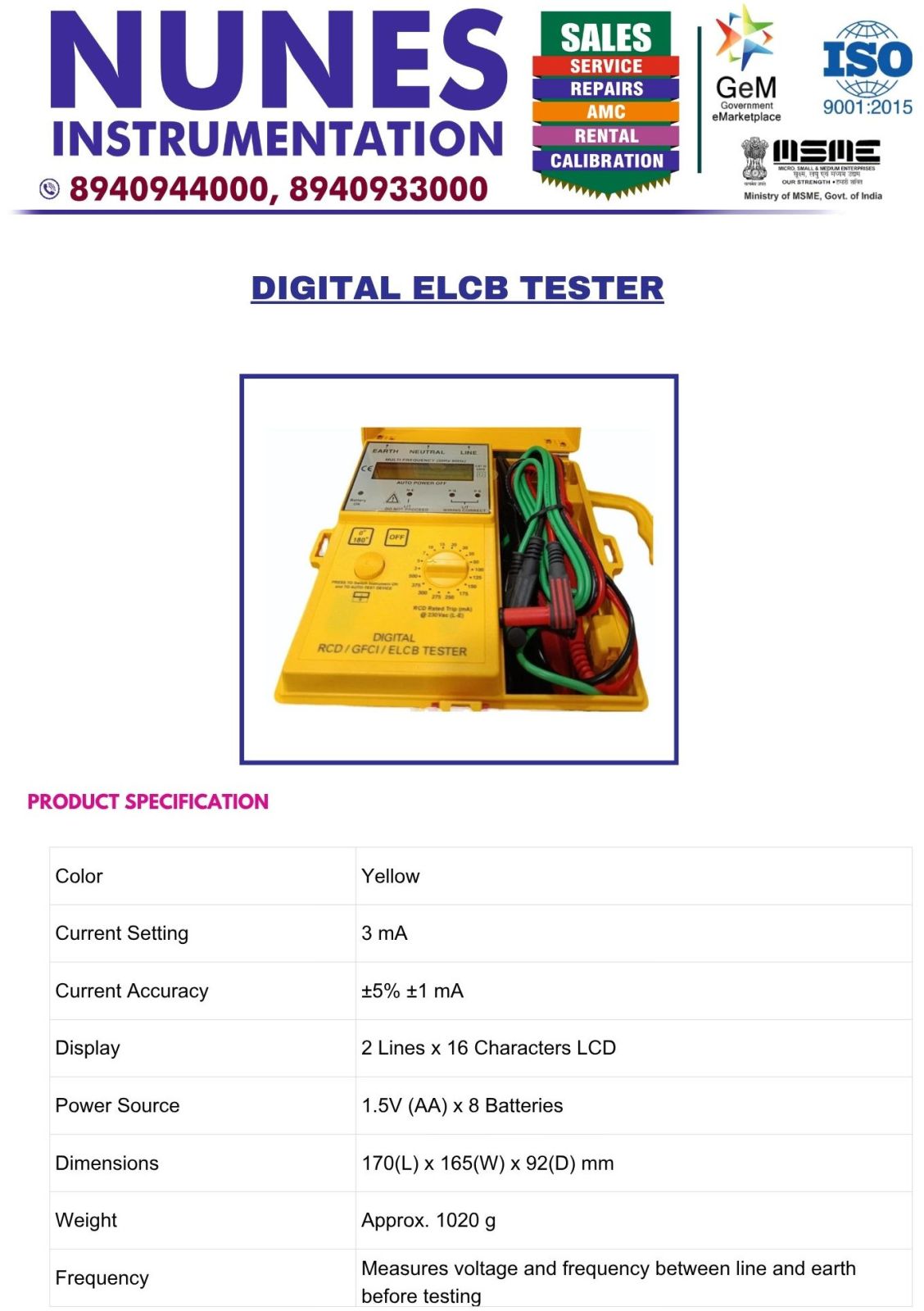

The RCB Tester is a microprocessor-controlled instrument designed for accurate and reliable testing of residual current devices (RCDs). Featuring a clear 2-line × 16-character LCD display, it allows users to view test parameters and results simultaneously. The tester includes an automatic data hold function and zero-crossing circuitry for precision testing at 0° and 180°, ensuring dependable results under varying test conditions.

With selectable current ranges from 3 mA to 375 mA, it is suitable for testing a wide variety of RCDs. The device also measures voltage and frequency between line and earth before conducting a test, adding an extra layer of safety and convenience. Compact and battery-powered, it is ideal for field and workshop use.

Key Features

• Microprocessor-controlled operation for high accuracy

• Dual-line LCD display for simultaneous data view

• Automatic data hold and auto power-off functions

• Zero crossing circuitry for testing at 0° and 180°

• Built-in voltmeter to measure voltage and frequency before testing

• Rotary switch for quick current selection

• Complies with EN 61010-1 CAT III 240V safety standards

• Compact, portable, and user-friendly design

Applications

• Testing and verification of RCDs in electrical installations

• Industrial, commercial, and residential electrical maintenance

• Quality control and field testing in electrical safety audits

• Laboratory and educational training on circuit protection devices
