ME2208A 8 in 1 ME2228B MPEG-2/H.264 SD Encoder is our professional SD audio & video encoding and multiplexing device with powerful functionality. It has 8 independent channels of video input....

Company Information

Member Since 18 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

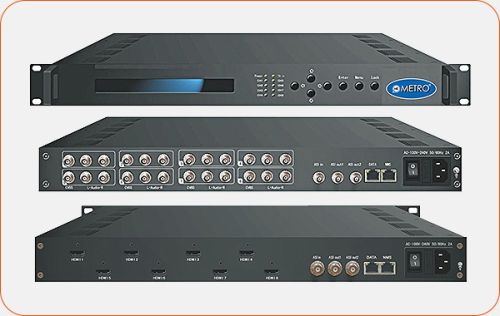

ME2208A 8 in 1 ME2228B MPEG-2/H.264 SD Encoder is our professional SD audio & video encoding and multiplexing device with powerful functionality.
It has 8 independent channels of video input interfaces supporting MPEG-2 and H.264 encoding, and 8 pairs of unbalanced stereo audio inputs with MPEG-1 Audio layer 2, LC-AAC and HE-AAC encoding. In

FEATURES

* Support 8 CVBS input and 1 ASI Input for re-mux
* Support H.264 & Mpeg2 video encoding
* MPEG1 Audio Layer 2, LC-AAC and HE-AAC audio encoding
* Support VBR/CBR video encoding
* Support Low Latency function
* Support PSI/SI editing and inserting
* Supports MPTS or 8 SPTS IP (UDP, RTP/RTSP)Output
* Supports IP null packet filter
* Real-time output bit-rate monitoring
* LCD / keyboard and web NMS operation
* Update device through NMS port

Input	8 CVBS inputs, BNC interface 8 pairs unbalanced stereo audio input, BNC interface 1 ASI input, BNC interface
Video	Resolution Encoding Bit-rate	PAL:720576NTSC:720*480 MPEG-2,H.264 0.5~15Mbps for H.264 encoding 1-15Mbps for MPEG-2 encoding
Video	Rate Control Aspect Ratio Advanced Pretreatment	CBR/VBR 4:3, 16:9 De-interlacing, Noise Reduction, Sharpening
Audiot	Encoding Sampling Rate Bit-rate	MPEG-1 Audio Layer 2, LC-AAC, HE-AAC 48Khz 32Kb/s~384Kb/s
Multiplexing		1 ASI input multiplexed with local 8 channels of TS
Steam output		2ASI output, BNC interface MPTS/8SPTS over UDP or RTP/RTSP, 100 Base-T Ethernet interface (UDP/RTP/RTSP unicast/ multicast)
Steam output		Low Latency achieved (Normal, mode 1 and mode 2 option) LCD/Keyboard and Web-based NMS operating Chinese-English control interface Ethernet software & hardware upgrade
Miscellaneous	Dimension (WxLxH) Approx weight Temperature Power Consumption	482mmx455mmx44mm 4kg 0~45°C(Work), -20~80°C(Storage) AC 100V-220V±10%, 50/60Hz 25W
