Contact SupplierWe are offering digital fan coil thermostat. Detailed product description:

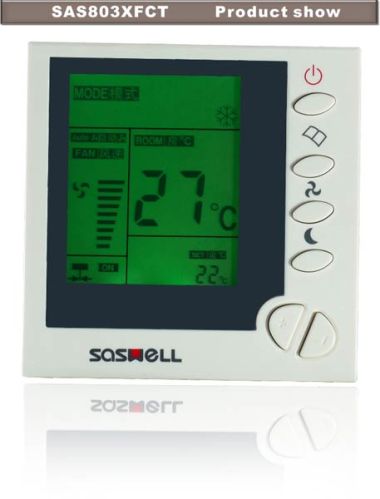

fan coil room thermostat sas803xfct-4y
application
the sas803xfct…room thermostat is apply to air conditioning system, heat pump system.
Application
this room thermostat is used in air conditioning system, apply to commercial buildings, residential buildings, light industrial buildings, hospital
specification
1. 2-pipe or 4-pipe heatingcooling available
2. remote controller available
3. compressor short cycling protection available
4. passive output available ,compressor linkage
5. display shows both set points and room temperature simultaneously
6. auto fan with adjustable 3-fan speed.
7. keep user setting during power loss
8. anti-freezing protection
technical data
1. voltage: ac220v±10% 5060hz
2. power load: 3a 5a 8a
3. setting range: 5°c~35°c accuracy: ±0.5°c
4. ambient temperature: -5~50°c
5. protective housing: ip21
6. housing material: pc
7. dimensions: 86mm×86mm×15mm flush mount
