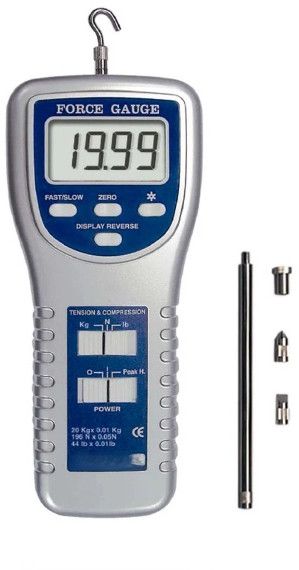

Automatic Brass Digital Force Gauge, Color : Grey, Silver

₹ 32,800 - ₹ 35,000 / piece

MaterialBrass
Automatic GradeAutomatic
Brand NameV-TECH
ColorGrey, Silver
Supply TypeExporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Member Since 8 Years
Nature of Business Manufacturer
GST No. 33AAIPN8819N1Z3

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameV-TECH
MaterialBrass
ColorGrey, Silver
ConditionNew
Automatic GradeAutomatic
Power6 × 1.5 V AA (UM-3) batteries or DC 9V adapter (optional)
ApplicationIndustrial
Digit Size16 mm (0.63 inch)
Resolution0.01 Kg / 0.01 Lb / 0.05 N
Accuracy±0.5% of full scale
Display5-digit LCD display with backlight
Measurement Capacity20.00 Kg / 44.10 Lb / 196.10 N

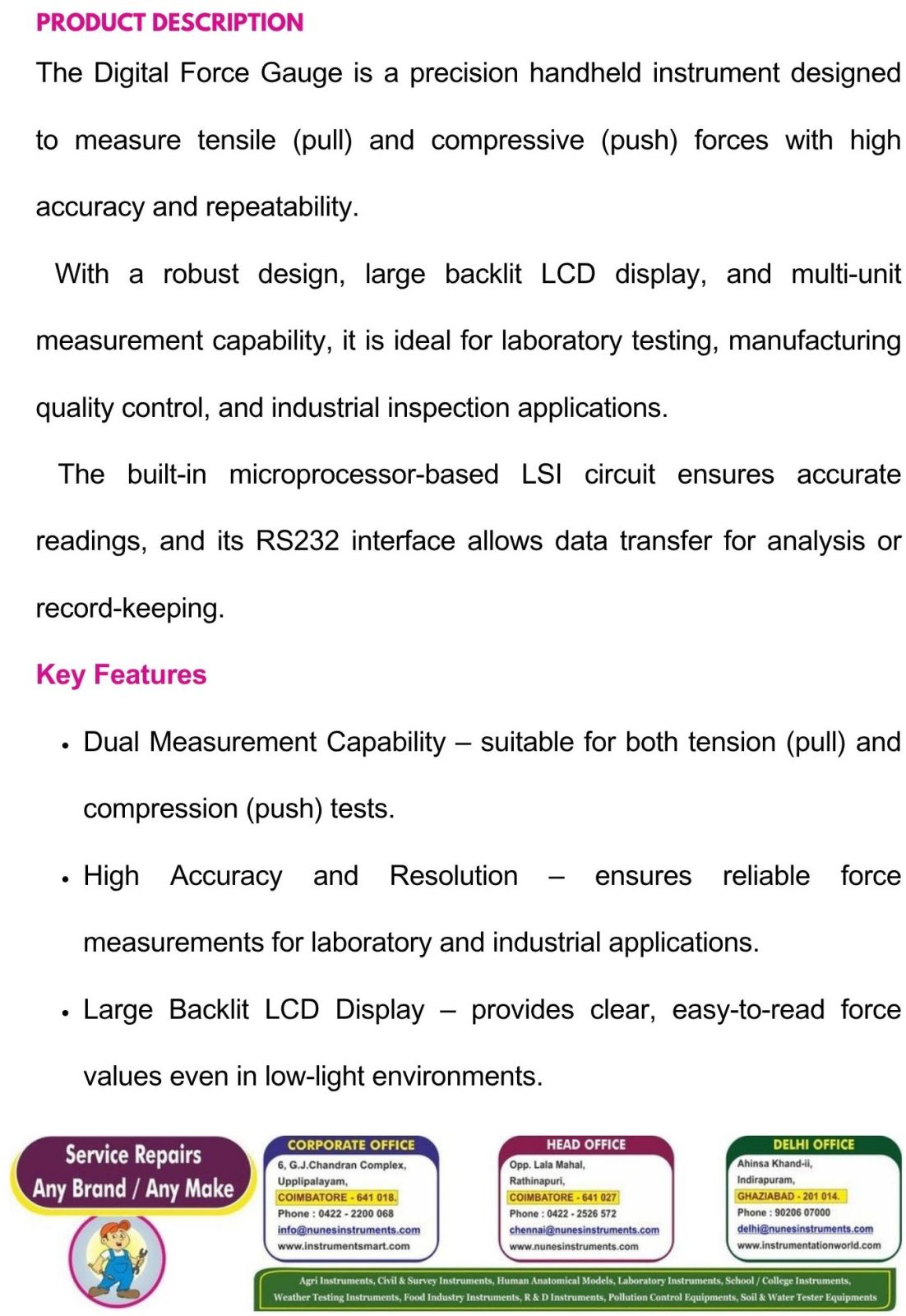

Description

The Digital Force Gauge is a precision handheld instrument designed to measure tensile (pull) and compressive (push) forces with high accuracy and repeatability.
With a robust design, large backlit LCD display, and multi-unit measurement capability, it is ideal for laboratory testing, manufacturing quality control, and industrial inspection applications.
The built-in microprocessor-based LSI circuit ensures accurate readings, and its RS232 interface allows data transfer for analysis or record-keeping.

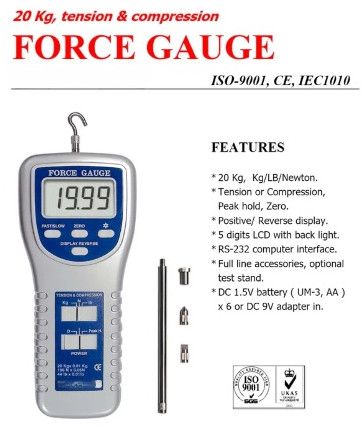

Key Features

Dual Measurement Capability – suitable for both tension (pull) and compression (push) tests.
High Accuracy and Resolution – ensures reliable force measurements for laboratory and industrial applications.
Large Backlit LCD Display – provides clear, easy-to-read force values even in low-light environments.
Multiple Units – allows user selection of measurement units (g, oz, N, Kg, Lb).
Peak Hold Function – stores the maximum (peak) force value during a test.
Data Output (RS232) – enables data logging or connection to a PC or printer.
Auto Power-Off and Low Power Consumption – extends battery life.
Durable Construction – designed for rugged environments with ergonomic handling.
Fast Response Time – selectable display update rate for dynamic or stable measurements.
Microprocessor-Based Circuit – ensures precise, repeatable readings with digital stability.

Applications

Manufacturing Quality Control – for testing spring tension, material strength, and product assembly force.
Research & Development – for evaluating mechanical properties of materials and components.
Electronics & Component Testing – for switch, connector, or button actuation force measurement.
Automotive & Aerospace Industries – for component load verification and stress analysis.
Packaging Industry – for seal strength and compression force testing.
Educational & Laboratory Use – for demonstration and experimental study of force mechanics.
