Digital Gauges

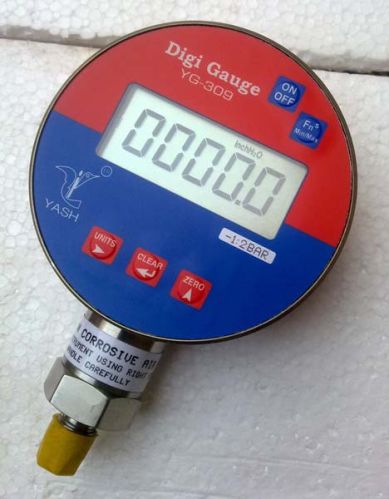

DIGITAL TEST GAUGE YG 309
Technical Specification -STANDARD VERSION: 100mm
High resolution Imported Sensor gauge
Media: Air/ Gas / Liquid – With any media that will not adversely affect SS 316
Measuring Units: Selection of 8 types Engineering Units
(Kg/Cm2, Bar, PSI, KPA, MMWC, MM Hg, IN WC, IN HG)
Display:
5 Digit LED Display 15mm
Min/Max Capture, On / OFF, Zero adjustment
Accuracy ±0.1% of FSD
Case Aluminum Anodize 100mm,
Internal Working Complete SS Internal Parts
Thread Connection 1/4" BSP
Mounting Bottom
Power Supply 7.5 VDC (1.5V X 5No Alkaline) Duracell type MN 1500
Battery Life 1000 Hours
Temperature Storage -10 to +50 Degree Celsius,
Alongwith Calibration Certificate
For YG 309 Model
For Range: (-) 1 to 700 bar
