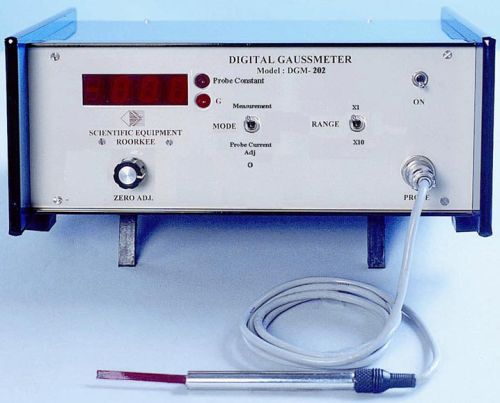

We offer Digital Gauss meter, it operates on the principle of Hall Effect in Semiconductors. A semiconductor carrying current develops an electromotive force, when placed in a magnetic field, in a direction perpendicular to the direction of both electric current and magnetic field. The magnitude of this e.m.f. is proportional to the field intensity if the current is kept constant. This e.m.f. is called the Hall Voltage. The small Hall Voltage is amplified through a high stability amplifier so that a millivoltmeter connected at the output of the amplifier can be calibrated directly in magnetic field unit (Gauss).
Features
Wide Range (1G to 20KG)
Excellent Linearity
Excellent Stability
Interchangable Hall Probes
Applications
Wide application in industry where accurate measurements of magnetic field is required.
Measurement of steady magnetic
field e.g. in loud speakers, dynamo, moving coil instruments etc.
Useful in laboratory experiment involving measurement of magnetic field.
With easy interchangeability of Hall Probe, same Gauss-meter can be used with both transverse and axial probe.
Specifications
Resolution: 1 Gauss at 1 kilo Gauss range
Range: 1KG and 10KG with 100% over ranging
Accuracy: ±0.5%
Temperature: Upto 50°C
Display: 3½ digit, 7 segment LED DPM with auto polarity and overflow indication
Power: 220V ±10%, 50Hz
Transducer: Hall Probe – InAs
Special Feature: Indicate the direction of the magnetic field
Weight: 3Kg
Dimensions: 280mm X 255mm X 120mm
