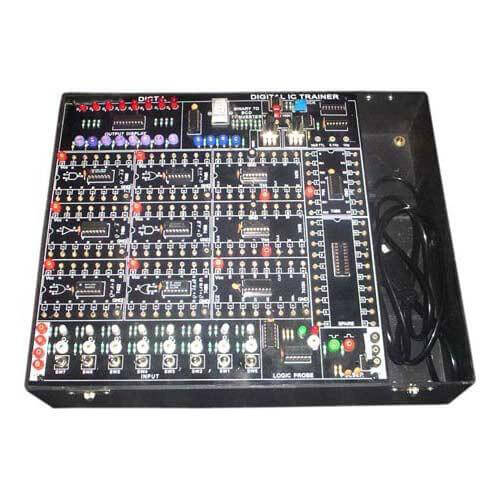

Digital IC Trainer (VPL-DL-DICT)

Get Latest Price

Power ONPower ON switch with indicator for mains on indication and fuse for protection.
Power Requirement230 ±10%V AC, 50Hz, single phase.
Logic Level InputsEight independent buffered logic level inputs to select high/low TTL levels, each with a LED to indicate high/low staturs and termination.
Manual PulserOne independent buffered bounceless manual pulser (useful to freezing the action of each stage of the counter after every clock pulse).
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

VPL Infotech & Consultants

Preet Vihar, Delhi

4.6/5

(28)

View Number

Member Since 19 Years
Nature of Business Manufacturer
GST No. 07AACFV6024H1Z9

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Logic Level InputsEight independent buffered logic level inputs to select high/low TTL levels, each with a LED to indicate high/low staturs and termination.
Patch CordsSet of 20 assorted coloured multi-stand wires with 2mm stackable plug termination at both ends.
AccessoriesInstruction Manual.
VariableOne low-frequency variable clock generator
DC Supplies5V/500mA
Power ONPower ON switch with indicator for mains on indication and fuse for protection.
Power Requirement230 ±10%V AC, 50Hz, single phase.
Logic Level IndicatorsEight independent buffered logic level indicators for High/low status indication of digital outputs.
Manual PulserOne independent buffered bounceless manual pulser (useful to freezing the action of each stage of the counter after every clock pulse).
Fixed0.1Hz, 1Hz (simultaneous 5Vindependent outputs)

To fulfil the variegated demands and requirements of numerous patrons, we are instrumental in offering Digital IC Trainer. It is prepared by making use of the top quality components and latest techniques. Apart from this, it is available at the nominal rates.

To fulfil the variegated demands and requirements of numerous patrons, we are instrumental in offering Digital IC Trainer. It is prepared by making use of the top quality components and latest techniques. Apart from this, it is available at the nominal rates.

Features:

Power efficiency
High work capacity
Durable

Experiments:

Study of basic gates and verification of their truth tables (NOT, OR, AND, NOR, NAND, EX-OR, EX-NOR).
Study and verifications of the laws of Boolean Algebra and Demorgan’s theorem.
Study of important TTL terminologies, verification of important TTL circuit parameters.
Construction and verifications of various types of flip-flops using gates & IC’s (RS, JK, D, T, M/SJK).
Construction and verification of various types of combinational circuits such as Half Adder, Full Adder, Half Subtractor, Full Subtractor, Even/Odd Parity Checker, Multiplexer, Demultiplexer, Binary to Gray & Gray to Binary converters.
Construction and verification of various types of Up/Down, Synchronous Asynchronous, Ripple, Reverse, Ring, Binary, BCD & Decade Counters.
Construction and verifications of 4 bit universal shift register (SR/SL operation).
Study of 7-segment display and decoder/driver.
