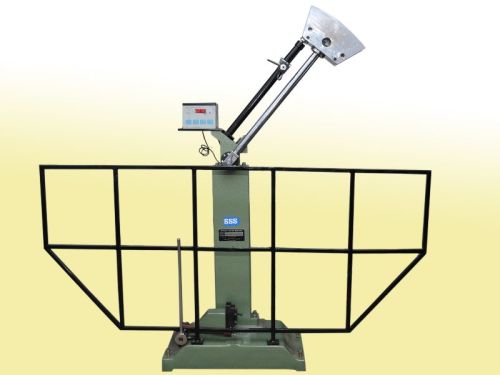

Electric Automatic Digital Impact Testing Machine, for Industrial Use, Voltage : 110V

Listing ID #898994

Buyers can avail themselves of high-performance Digital Impact Testing Machine at best prices from us! We are one of the eminent Manufacturers and Suppliers of Digital Impact Testing Machine in Maharashtra. We fabricate these machines to perform Izod and Charpy tests. The methodologies adopted to conduct these tests adhere to BS : 131 : Part 4-1972 (Amended 15 Aug. 1993) BSEN : 10045-2 : 1993.
Working :
The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for Charpy & the lower one for Izod testing. On release, the pendulum swings down to break the specimen and the energy absorbed in doing so, is measured as the difference between the heights of drop before the rupture of the test specimen and is read from the maximum pointer position on the dial scale.
(It is read on the digital readout in case of electronic machines.)
There are two strikers and one combined support available for fitting in to the pendulum and onto the base of the machine for the Izod, Charpy test respectively. Changing from one striker to another is achieved simply by fixing the new striker into its position.

Optional Accessories :

• Caliper gauge for checking V notch for Izod & Charpy.
  Templates for checking 10 x 10 mm cross section of Izod
• / Charpy test specimen
• Depth notch gauge including V & U notch gauges for checking depth blow V/U notch, angle and radius.
• Self centering tong for quick and accurate setting of
• Charpy test specimen.
• 'V' notch milling cutter
• 'U' notch milling cutter

NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.
