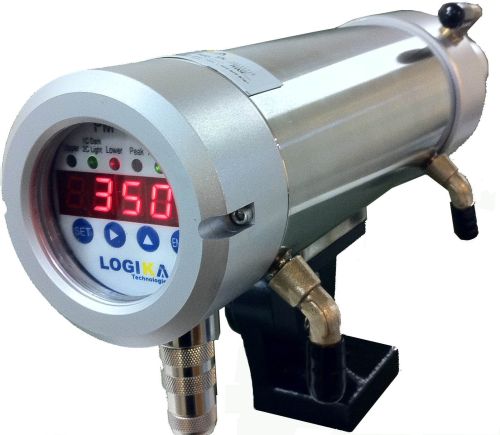

Logika Digital Infrared Pyrometer For Monitor Temprature

The single color infrared pyrometer is primarily used in the metallurgical industry to measure the temperature of steel or molten iron, wire, rod, and hot-rolled steel. The pyrometer can “look” into a process and measure the target temperature from a distance, providing an accurate reading while eliminating problems associated with contact measuring devices. The complete spot should be filled by hot metal to measure the right temperature, and precautions should be taken to avoid dust, water and water vapor at the point of measurement.

• Slab / Billet / Bloom
• Thin Slab / Tunnel Furnace
• Thin Strip
• Furnace Exit
• Hot Strip / Plate Mill
• Long Products Rolling
• Pipe and Tube
• Wire / Rod
• Heat Treatment Furnace
• Forging

• IP66 Enclosure designed for harsh environments
• Integrated Air Purging to keep front window clean
• Back Panel Adjustment
• Laser pointer for alignment
• Easy to install
• Fast Response time
• Used on relatively simple applications including flat surfaces.

• PM25S11 covers temperature range of 250°C to 1100°C (482°F to 2012°F)
• PM30S14 covers temperature range of 300°C to 1400°C (572°F to 2512°F)
• PM30S16 covers temperature range of 600°C to 1600°C (1112°F to 2912°F)
• Fiber Optic Measurement Head available on all models
• Custom length fiber cable available
• Junction Box – Includes AC/DC converter and terminal connections
• Custom Length Power cables
