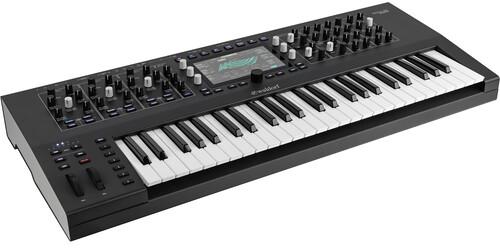

| Type | Digital Keyboard Synthesizer |
| Polyphony | 16 Voices |
| Multitimbral | Dual Timbral: Split or Layered Mode with Separate Stereo Audio Outputs |
| Oscillators | 3 Digital Oscillators Per Voice, Each Capable of Five Synthesis Algorithms Wavetable: Waldorf Style with Latest Additions from Nave Including Speech Synthesis and Wavetable Generation from Audio Waveform: Waveform with Up to 8 Simultaneous Waves per Oscillator in Detuned or Chordal Mode with Hard-Sync, Warp, and PWM, as Well as Tunable Noise Particle: Sampler in Traditional and Granular Mode Using Multisamples or Live Input Resonator: Exciter Using Multisampling Plus Filterbank Sound Model Kernel: 6 Internal Kernel Operators per Osc Using Various FM, Ring-Mod, AM, or Wavetable Based Audio-Rate Modulations |
| Filters | Two Digital Stereo Filters in Various Modes and Configurations Including Innovative Link Modes Digital Former: Additional Digital Algorithms per Voice Like Comb, High-Pass, Band-Pass, and Notch Filters (Nave, Largo, or PPG models), Bit-Crusher, Drive, and More |
| Modulation | Complex Multistage LFO/Envelope Modulators 6 LFO in Poly and Global Mode with Extensive Parameter Set 6 Loopable Envelopes Extensive Modulation Matrix with 40 Slots and Easy Control Assignments |
| Effects | Master Effect Rack of 5 Slots for Each Timbre, Choosing from FX like Phaser, Flanger, Chorus, Reverb, Drive, EQ, and More Main Output: Compressor |
| Step Sequencer | Step Sequencer with Step Recording, Parameter Automation, and Scale-Based Pitch Quantization |
| Tuning | Microtonal Pitch Configurations Capable of Importing Skala SCL Files |
| Arpeggiator | Yes |
| Chord | Chord-Play Mode with Hold and Latch |
| Unison Mode | Yes |
| Presets | Module-Based Preset System for Effects, Oscillators, and Complex Modulators |
| Controls | Single-Function Potentiometer and Encoder Controls for Intuitive Editing Pad Button Matrix: 4x4 Pads for Sequencer, Arpeggiator, Sampler, or Live Performance Control Supports Polyphonic Aftertouch Automation of Sound Parameters from MIDI Inputs via MIDI CC Learn Function |
| Display | Visualization and Deeper Sound Editing via Context-Sensitive High-Resolution Capacitive Multitouch Display |
| Spectral Analyzer | Spectrum Analyzer and Oscilloscope at Various Processing Stages |
| Memory | Internal Flash Memory: 4 GB for Presets, Samples, and Wavetables Up to 7000 Sound Patch Capacity Organized by Banks, Attributes, Author, and Patch Number Favorites Lists for Quick Recall of Sound Patches Like for Setlists Preloaded with a Wide Variety of Patches by Acclaimed Sound Designers like Howard Scarr Preloaded with More than 1 GB Sample Data |
| Inputs and Outputs | Main Output: 2 x 1/4" / 6.3 mm Headphone Output: 1 x 1/4" / 6.3 mm and 1 x 1/8" / 3.5 mm Inputs: 2 x 1/4" / 6.3 mm 4 CV Continuous Control Inputs Including CV Gate, CV Clock, and CV Start Inputs for Connecting Eurorack Modules or Compatible Devices |
| Sampling | Recording of Samples from Audio Inputs or Self-Recording of Audio Outputs |
| USB | Computer: USB Type-B Controller: USB Type-A |
| MIDI | Connectors: Input: 5-Pin DIN Out: 5-Pin DIN Thru: 5-Pin DIN |
| SD Card Slot | Export and Import of Presets, Samples, Wavetable, and Software Updates Import of Nave Presets |
| Power | Voltage Input: 100 to 240 VAC, 50/60 Hz External Power Supply: 12 VDC, 3 A (Included) Max Power Consumption: 15 W |
| Dimensions (W x D x H) | 33.5 x 14.0 x 4.3" / 85.1 x 35.5 x 11.0 cm |
| Weight | 26.5 lb / 12.0 kg |
