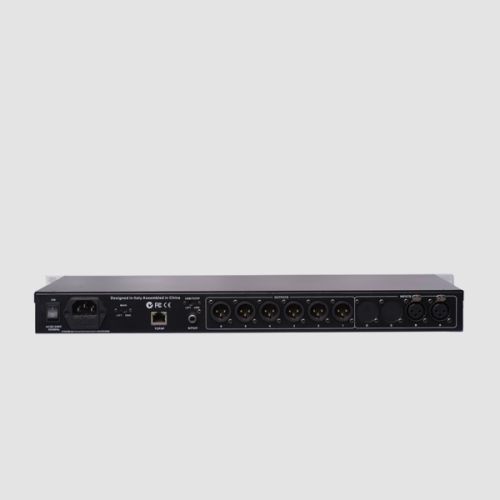

Digital Loudspeaker Processor

Get Latest Price

S/N>110dBA
Analog Output6 x XLR electronically balanced
THD+N0.001% at 1kHz 0dBu
Digital Input1 SPDIF; Gain 0dBu
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Lloydlee Company

Kalina, Mumbai, Maharashtra

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

S/N>110dBA
AD & DA Converters1x AK5388 24bit, 3x AK4396 24bit
Analog Output6 x XLR electronically balanced
Analog Input2 x XLR electronically balanced
Frequency Response20Hz – 20kHz; -0.5dBu at 20Hz and 20kHz
Minimum Load150 ohm
THD+N0.001% at 1kHz 0dBu
Digital Input1 SPDIF; Gain 0dBu

ENIGMA 26+

High Sonic Performance 2-IN/6-OUT Digital Loudspeaker Processor

ENIGMA26+ is a complete integrated tool that allows all aspects of loudspeaker management for public address system applications. Designed to be provided for any crossover configuration, it offers 2 analog inputs, 1 digital input and 6 analog outputs, managed by a powerful DSP Engine in addition to 24 Bit AD/DA Converters.

Each input channel provides noise gate function, Automatic Gain control, configurable Delay, a choice of EQs, selecting either a 7-band parametric EQ or 15-band graphic EQ. It also includes a 7-band Feedback Eliminator and a powerful Sub Harmonic Synthesizer. Each output offers up 4-band of parametric equalization, in addition to the crossover filters which themselves provide slopes from 6dB/Octave up to 24dB/Octave. Each output path also features RMS compressor, Peak Limiter and configurable Delay.

utstanding Performance	Excellent sonic performance with 24bit high end converters coupled with 48kHz sample rate 2 inputs, 6 outputs with full matrix mixing
Top-grade DSP Engine	7 band parametric equalization per input channel 4 band parametric equalization per output channel Each band can be switched to Bell, Low/High Shelving, Low/High-Pass, All-Pass. All of them with variable Q response Crossover filters with slopes from 6dB/Octave up to 24dB/Octave including Butterworth, Bessel, Linkwitz-Riley and customizable topologies Automatic Gain Control, Noise reduction, 7-band Feedback Eliminator and a powerful Sub Harmonic Synthesizer per input channel Pink/White noise internal generator per input channel for setting and tuning audio system Each output features a precision dynamic range controller composed of a Peak Limiter and a RMS Compressor with selectable ratio and variable knee Adjustable Delay time up to 600 ms for every input and output channel
Direct PC/Network Connection	Front panel USB connector for direct PC communications RS485 connection for system setup, monitoring and control via fully manageable remote PC software
Control	Front panel interactive LCD display for local access and configuration Front panel 7-LED level meter indicators per channel Simultaneous control up to 32 units via PC software Up to 50 storable user presets Security Lockout
