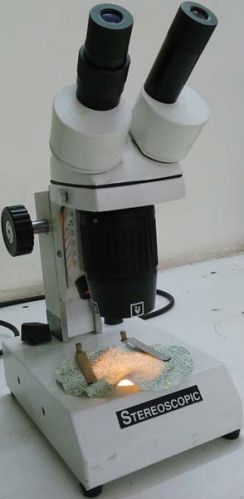

Digital Microscope for Woven / Knitted Pattern.
2x,4x lenses binocular biological microscope. Scope of use Woven / Knitted fabric's Pattern.
With high resolution CCD camera and imaging software and measurement facilities 20000 INR extra.
Range: 2x, 4x lenses
Focus: Adjustable
Lights: White, Blue, Yellow Upper & Lower
Supply: 240 Volt AC Supply
Total Size: 200 mm (L) x 160 mm (W) x 550 mm (H)
Weight: 20 Kg
Note: Computer is not a part of standard package; you̢۪ll need to purchase it locally.
Camera & Software Features & Specification:
Model
1.3 Mega Pixels
1/2" CMOS
5.2µmX5.2µm
1.8
1280 X 1024
1.3M pixels
20frames/sec @ 1280 X 1024
65dB
8.0 Mega Pixels (At Extra Cost)
25000/- INR Extra or 500 USD.
Image Sensor
Pixel Size
Sensitivity (v/lux-sec @550nm)
Max Resolution (Hardware)
Speed (Depend on the PC)
Dynamic Range
Wave Length(nm)
400-650nm (IR-Cut added)
Exposure
ERS (Electronic Rolling Snap)
White Balance
Automatic / Manual
Auto-exposure
Automatic / Manual
Image Output
USB2.0, 480Mb/s
Power Supply
USB2.0
Programmable Control
Image size, brightness, gain, exposure time
Working Temperature
-30°C ~ 70°C
USB Cable
USB cable, length 2.5m
Camera Body
Type A: Anodized metal body of cylinder shape, ?60mm
Type B: Metal body painted in black square shape, 41 X 50 X 50 (mm)
Accessories Included
2 adaptors (?23.2-?30, ?23.2-?30.50, one each) for stereomicroscope
Software
Advanced Image-processing software: ScopePhoto.
Driver, which supports DShow & TWAIN interface, output data RGB24
Operating System
Windows 2000/XP(SP2)/ 2003/ Vista/2008
Hardware
A Digital Camera for Microscope with 1.3M / 8.0M pixel (At Extra Cost) resolution, with high quality, true color and easy USB2.0 interface
Built-in reduction lens for possible largest field of view
Fits all kinds of microscopes including biological, stereo, and metallurgical microscope with monocular, binocular, trinocular observation head
