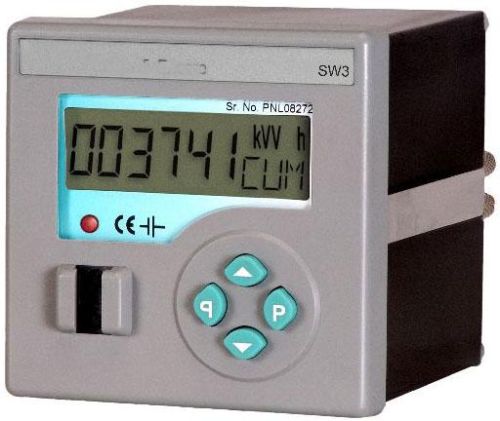

Digital Panel Energy Meter

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Our company is one of the reliable Suppliers of Digital Panel Energy Meter in Mumbai. Digital Panel Energy Meter is a 96x96 digital polyphase panel meter to measure power and energy parameters.....

View More Details

Send Enquiry

Product Details

Our company is one of the reliable Suppliers of Digital Panel Energy Meter in Mumbai. Digital Panel Energy Meter is a 96x96 digital polyphase panel meter to measure power and energy parameters. Digital Panel Energy Meter is an ideal replacement for analogue voltmeters, ammeters and energy meters. Digital Panel Energy Meter has pulse output and other advanced features for use in control panels, relay panels and building management systems (BMS).
Features and Benefits of Digital Panel Energy Meter

True RMS measurement
Accuracy class - 1.0 and 0.5s
Metrology LED output configurable for active, reactive and apparent energy
Accurate readings even at very low current
- 50mA to 6A for Ib=5A
- 10mA to 1.2A for Ib=5A
LCD display with keypad
Favorite page for customized display
Fully type tested
Tamper detection for PT miss, CT reversal, CT miss, low PF, over voltage
Auto scaling for Power / Energy (up to Giga)
Advanced page mode display
User programmable setting of CT & VT primary values
On board diagnostics for reporting connection faults
Optical port for local and remote reading
Load profiling of 88 parameter days @ 30 min IP for energy parameters
Volts free pulse output for energy parameters

Technical Specifications

Electrical
Connection type	CT operated, CT / PT operated
Wiring configuration	LT (3P4W), HT (3P3W, 3P4W)
Voltage range	LT: 240V (L-N) 415V (L-L) HT: 63.5V (L-N), 110V (L-L)
Current range	1-1.2A (Starting :1mA);5-6A(Starting: 5mA)
Overload	Confirms class of accuracy up to 120%Ib continuous Withstand up to 130% Imax continuous \| 20 X Imax for 0.5 sec
Accuracy	Class 0.5s,1.0
Main frequency	50Hz ± 5%
Burden	Voltage circuit- <1.5W, <1VA Current circuit- <0.5VA
Approvals
Standards	IS14697, IS13779 IEC 62052-11, IEC 62053-21, 22, 23
Mechanical
Dimensions (WXH)	96 x 96 mm
Cut out size	92 x 92 mm
Depth behind bezel	84mm
Weight	650gms
Enclosure	Extruded aluminium
Terminals	Combicon connector
Max conductor size	2 2.5 mm²
Environmental
Ingress protection	IP 50 (Front face)
Dielectric strength	1. Isolation: 2kV RMS, 50Hz \| 2. Impulse withstand: 6kV
Temperature	-10 ^oC to +55 ^oC (operating) \| -25 ^oC to +70 ^oC (storage)
Humidity	95% non-condensing
Features
Favourite page	Configurable through keypad
CT/VT primary	Programmable through keypad
Communication	PACT port
Pulse output	Voltage rating : 240 V \| Current rating : 100 mA DC max Parameter : Configurable \| Extra pulse output : On request
Display	Customised LCD display
