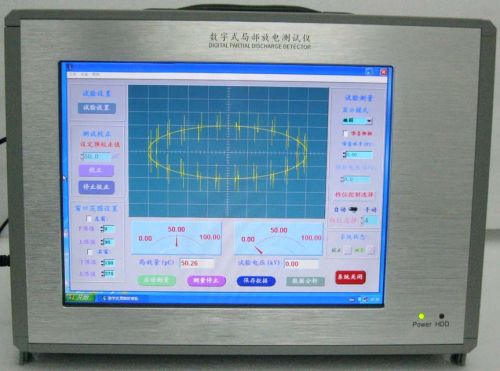

Digital Partial Discharge Measuring Detector

We are offering digital partial discharge measuring detector for off-line test. Main features:
1） the domestic unique anti-interference mode can greatly attenuate the space interference of field test.
2） by using high-speed and large-capacity daq card, it can acquire partial discharge data continuously with good reproducibility and high accuracy.
3） multi-functions, such as test analysis(multi-parameter analysis, two dimensional spectrum analysis, three dimensional spectrum analysis ), data storage, report generation and printing, etc.
4） it can display the waveform of partial discharge (ellipse, sine wave and linear), partial discharge level and test voltage.
5） in the process of rectifying and testing, it can adjust the gain automatically without human intervention. Meanwhile, it is easy to operate.
6） it can adapt to different power sources with 50hz power frequency, 150hz third harmonic generation or 400hz power.
7） open-window and open-door can be set freely minimum to one degree
8） it is with small volume and light weight. It is not only suitable for field test, such as electric power department and the factory workshop, but also for the scientific research.
9） with high sensitivity and wide application of test object.
Main technical parameters
1） capacitance range of test product: 6pf～250μf
2） detection sensitivity:
