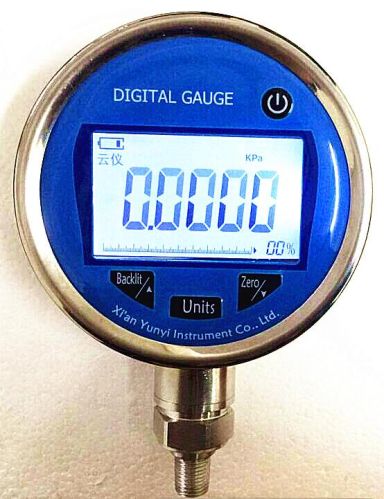

Contact SupplierWe are offering digital pressure gauge.
Technical data of digital pressure gauge
1 measuring range: 100kpa1kpa ~; 260mp
2 output signals: rs485, rs232, aci wireless communications, 4 ~ 20ma, etc.
3 accuracy class: 0.05, 0.1, 0.2, 0.4
4 display: 5 digit dynamic display + analog bargraph
5 overload pressure range 1.5-3-fold, depending on the measurement range may be
6 close current: less than 10 microamps
7 power supply: 3.6v high-energy lithium battery life 2-3 years or rechargeable batteries
8 medium temperature: -40 °c ~ 90 °c
9 process connection: m20 × 1.5 (external thread)
features:
1 micro-power, high accuracy, high-definition digital lcd six;
2 small size, simple operation, easy field calibration pressure gauges and precision pressure measurement using;
3 intelligent calibration, linear repair, two seconds and zero magnetic induction pen
4 lcd display with dynamic pressure, visual display percentages pressure
5 pressure unit: mmh2o mmhg psi kpa mpa pa mbar bar pressure up to ten units (optional)
6 dynamic pressure measurement can be displayed online curve, the peak record function (optional);
7 a variety of additional features. If rs486 interface output, 4-20ma output, data output usb interface instant messaging, storage function (optional)
