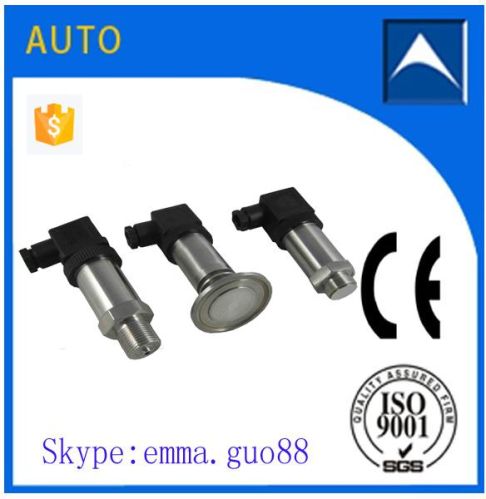

Contact Supplier ATSP131 Compact Pressure Transmitter
●Pressure range:0~0.1bar and 0~600bar
●Excellent long-term stability
●Small thermal effect
●Super anti-interference ability
●Application:machine tools 、process control、environmental technology 、pneumatics and others
Dimension figure
Technical Specifications
Pressure range Gauge Pressure: 0~0.1bar and 0~600bar
Static pressure 1.5×full scale
Accuracy 0.25%F.S.,0.5 %F.S.
Power voltage 12~30VDC,24VDC
Output signals 4~20mA, 0~10mA, 1~5VDC, 0~10VDC, 0~5VDC, customer
Thermal effect Compensated temperature Media Environment Storage
0~50℃,-10~80℃,customer -25~85℃ -30~85℃ -40~125℃
Temperature influence 0.02%F.S. °C
Electrical connection DIN, M12×1(4-pin), customer
Protection class IP65
Mechanical connection M20×1.5(M), G12(M), G14(M), customer
Vibration 20g, 20~5000HZ
Shock 100g,11ms
Housing material SUS304
Operating life ﹥1×108 Pressure cycles
