Digital Printing Printer

We are offering digital printing printer

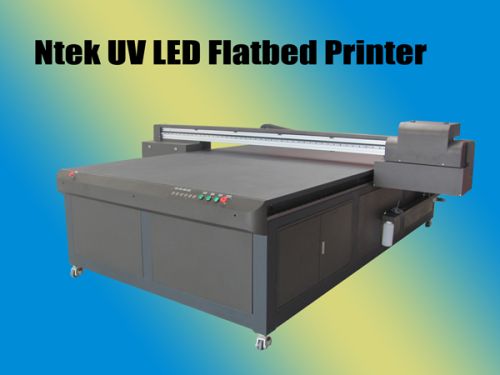

ntek uv digital printing printer--linyi win-win machinery co.,ltd
uv digital printing printer applications
printed materials could be: glass, ceramic, ceiling, aluminum sheet, wood board, door sheet, metal panel, billboard, acrylic panel, plexiglass, paper board, foam board, pvc expansion board, corrugated cardboard; flexible materials such as pvc, canvas, cloth,carpet, sticky note, reflective film, leather etc. All kinds sheet materials and coiled materials.
uv digital printing printer application areas
decoration industry, glass industry;
sign industry;
exhibition industry;
rigid paperboard packing industry;
leather, art-ware industry, etc.
uv digital printing printer specification
product model : yc2513/yc2515/yc2025/yc2030
printhead technology : drop-on demand piezo electric
printhead control : printhead voltage is software adjustable
printhead type : epson dx5 printhead
printhead number : 1/2
ink characteristics : uv curing ink/eco-solvent ink
ink reservoirs: refillable on the fly while printing/1000ml per color
led uv lamp: more than 20000-hours life
color control: icc based color,curves and density adjustment
printhead arrangement :
cmyk/c m y k lk llk lc lm
cmykw/c m y k lk llk lc lm w
cmyk*2/c m y k lk llk lc lm *2
printhead cleaning system : automatic cleaning system, automatic dry-preventing system
guide rail : taiwan hiwin(thk optional)
working table : vacuum sucking
printing size :
yc2513:2.50x1.30m
yc2515:2.50x1.50m
yc2025:2.00x2.50m
yc2030:2.00x3.00m
print interface: usb2.0
media thickness: less than 100mm
printing resolution&speed :
360x720dpi(4pass) 25sq.m/h(2 epson dx5 printhead)
360x1080dpi(6pass) 20sq.m/h(2 epson dx5 printhead)
720x720dpi(8pass) 15sq.m/h(2 epson dx5 printhead)
720x1080dpi(6pass or 12pass) 12sq.m/h(2 epson dx5 printhead)
720x1440dpi(8pass or 16pass) 6sq.m/h(2 epson dx5 printhead)
life of printed image: 5 years(outdoor),10year(indoor)
file format :tiff,jpeg,postscript,eps,pdf etc.
rip software: ultra print
power supply: 220v 50/60hz(10%)
power: less than 2kw
operation environment : ambient temperature 20 to 30 cetigrade,relative humidity 40% to 60%
equipment dimension:
yc2513:3.90(l)x1.85(w)x1.30(h)m
yc2515:3.90(l)x2.05(w)x1.30(h)m
yc2025:3.90(l)x2.55(w)x1.30(h)m
yc2030:3.40(l)x3.55(w)x1.30(h)m
equipment weight :
yc2513:800kg yc2515:1000kg yc2030:1500kg yc2025:1300kg
warranty : 1 year exclude the print head,ink filter and ink pump
after-sale service: 24-hour on-line realtime technology service
linyi win-win machinery co.,ltd produce uv flatbed inkjet printer, uv glass flatbed printer, uv ceramic tile flatbed printer, plexiglass printing machine, foam board printing machine, uv digital printing machine, uv inkjet flatbed printer, pvc board flatbed printer, phone case printing machine, digital flatbed printer, large format printer, wide format flatbed printer, flatbed and roll-to-roll printer, outdoor inkjet printer.
uv digital printing printer more information required, please come to visit our company website
ntek uv digital printing printer--linyi win-win machinery co.,ltd
