Digital Radiography System

Key features:
1,dg3620 use the most advanced flat-panel detector, which is imported from france,thales brand, it designed for surgical and interventional units, this detector is ready to run almost instantly .
2,with the digital radiography , images collected by high-resolution imaging technology to solve the energy loss of the traditional ccd detector, and geometric distortion problem.
3,standardized pacs system can be adapted to the needs of the new network era . With stable performance, low exposure dose, high-quality images can be easily obtained.
digital radiography system
our digital radiography system is with trixell flat panel detector, toshiba x-ray tube. It has dicom 3.0. Pacs system is supported.

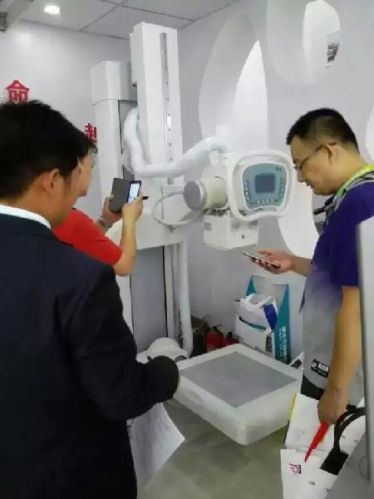

i. U-arm digital radiography
high frequency x-ray generator
20kw, 125kv, 200ma
exposure time 0.0025~6.4s
with function of self-protection
x-ray tube
toshiba x-ray tube
rotating anode, focal spot 0.61.2mm
anode heat capacity 140khu
digital flat panel detector
trixell flat panel detector
size 16�*17�
spatial resolution 3.4lpmm
image acquisition system (dr workstation)
cpu: intel pentium core
memory 2gb, hard disk 320g
monitor: dell 19� monitor
image processing: image rotating, image zooming, image processing, image printing, image transmission, e-report printing, etc.
Mechanical figures
vertical travel 650mm---1700mm
sid range 1000---1800mm
detector rotating range -45â°~0~+45â°
u-arm rotating range -30â°~0~120â°
mobile bed dimension 2050*550*800mm
