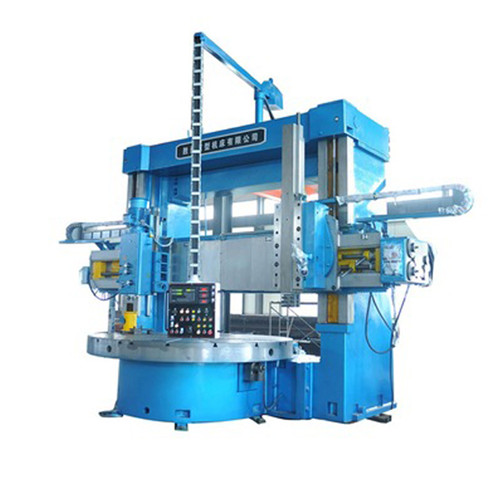

Digital Readout Used Metal Lathe Machine CTX5235

Product name : Digital readout used metal lathe machine CTX5235
The vertical lathe machine is equipped with Digital readout system. It is easy to operate. Cooling system and Chip conveyors are optional. On the machine cylindrical turning and boring,tapering and surfacing as well as grooving can be carried out rough and finishing.
Technical specification of Digital readout used metal lathe machine CTX5235
1 Table diameter 2830 3150mm
2 Maximum turning diameter of workpiece 3500mm
3 Maximum Height of workpiece 16002000220025003000mm
4 Maximum Weight of workpiece 1020T
5 Maximum cutting force of carriage,right tool post 35000N
6 Maximum torque 63000N·m
7 Step of table speed 16 step
8 Speed range of table 2~63rpm
9 Step of feed rate No data
10 Feed range 1~2000mmmin
11 Horizontal travel of tool post 1750mm
12 Vertical travel of tool post 1000mm
13 Rapid traverse speed of crossrail 350mmmin
14 Rapid traverse speed of tool post 2000mmmin
15 Maximum Rotation range of tool post ±30°
16 Travel of Left boring and milling head 600mm
17 Step of Left boring and milling head 8 Step
18 Speed change of Left boring and milling head 66-660rmin
19 Maximum turning diameter of boring hole of Left boring and milling head Ø400mm
20 Size of toolholder clamping((W×H) 40×50mm
21 Power of main motor 55KW
22 Machine weight(appr) 38T
