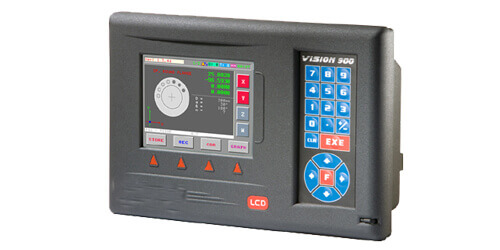

Digital Readouts

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

A very powerful micro-controller manages and processes all the information [position, calculation, etc.] trasmitted by the transducers or entered by the user. Having such a highly evolved but....

View More Details

Send Enquiry

Company Information

Lakshmi Electro Controls & Automation

Peenya Industrial Area, Bangalore, Karnataka

View Number

Member Since 16 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

A very powerful micro-controller manages and processes all the information [position, calculation, etc.] trasmitted by the transducers or entered by the user. Having such a highly evolved but user-friendly digital Readout means increasing the production performance of the machine on which it is installed considerably.

All instruments of the line model MERIT & VISION correspond to EEC Requirements 73/23 and 93/68 and EEC Requirements 89/336. Compact designed Digital Readout.
Diagnostic of readout and optical scale (internal cleaning and/or internal defects).
Reading of coded references (in combination with NCS scale).
Universal software for any kind of machine tool.
Software upgrade through serial port.
Program store for 1000 blocks.
Optional: Flush-mounted version (on a panel).

Model	VISION 700 1/2/3/4 Axes
Display	High efficiency	H = 17 mm
Signals	Two square wawes out of phase 90° ± 5°	05Vdc
Frequency	X – Y – Z – W	Max 250 KHz
Resolution	200 – 100 – 50 – 20 – 10 – 5 – 2 – 1 µm – 0,5 µm
Resolution	1° – 0.5° – 0.2° – 0.1° – 0.05° – 0.02° – 0.01° – 0.005° – 0.002° – 0.001°	Angular reading
Power supply	Standard Special	230 Vac ± 20% 50/60 Hz 110 Vac ± 20% 60 Hz
Memory	Static memory 48h autonomy
Protection	Norme DIN 40050	IP 40
Temperature	Operating Fonctionnement Storage Stockage	0° – 50°C -20° – 70°C
Weight		~ 1 Kg
