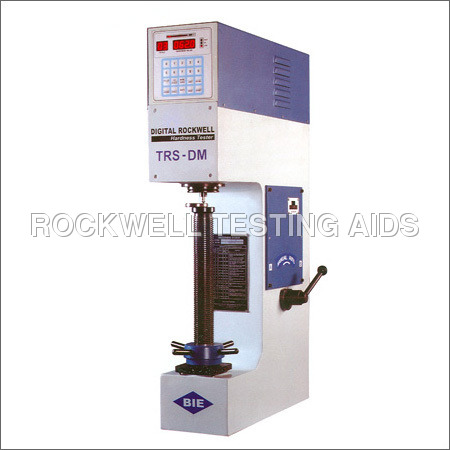

Digital Rockwell Hardness Testing Machine

Brand NameROCKWELL
Supply TypeSupplier, Retailer
Preferred Buyer Location India only

The range we present is quality assured by the professionals and from the initial stages of procurement of raw material, we make stern quality inspections to deliver the best range. To deliver the utmost product range in terms of quality, we do strict quality checks before the dispatch. Features: Robust construction Convenient controls Easy to operate and maintain Long working life

View More Details

Send Enquiry

Product Details

Technical Specifications

Model	TRS-DM	TRB-DM	TRB-250-DM	TSM-DM
Test Loads ( Kgf)	60. 100, 150 (Rockwell)	60, 100, 150 (Rockwell)	60, 100, 150 (Rockwell)	60, 100, 150 (Rockwell)
Test Loads ( Kgf)	60. 100, 150 (Rockwell)	187.5 (Brinell)	187.5, 250(Brinell)	15, 30, 45 (Rockwell Superspecial)
Inita Loads (Kgf)	10	10	10	10 (rockwell) & 3 (Rockwell Superficial)
Max. Test Height (mm)	295	295	295	295
Depth of Throat (mm)	148	148	148	148
Max Depth of Elevating Screw Below Base (mm)	290	290	290	290
Overall Dimensions	580X270X915	580X270X915	580X270X915	580X270X915
(L X W X H) (mm)(Approx).	580X270X915	580X270X915	580X270X915	580X270X915
Neff. Wt. Approx. (Kg)	110	110	160	160
Scales Displayed	Rockwell A,B,C,D,E,F,G,H,K,L, M, P, R, S, V, in Nos 1 to 15 resp.			Rockwell - A,B,C,D,E,F, G, H, K, L. M, P, R, S,V, 15N, 30N,45N,15T, 30T,45T in Non. 1 to 21 resp.
Least Count	0.1	0.1	0.1	0.1 For Rockwell,
Least Count	0.1	0.1	0.1	0.2 For Rockwell Superficial
Minor Load Setting	By Bar Graph Indicator (Manual Setting)
Load Control	Automat (loading. Dwell, Unloading for major load)
Dwell Time	1 ito 99 seconds selectable
Printer Interface	Centronics Parallel Port to connect Dot Matrix Printer
Power Supply	220 v, Single Phase, 50 Hz AC (3 Wire System)
