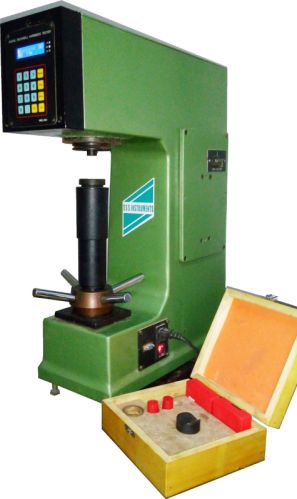

Digital Rockwell Hardness Testing Machine

Digital Rockwell Hardness Testing Machine, Voltage : 110V, Power : 1-3kw

Listing ID #1275764

Get Latest Price

MOQ 1 Set(s)
Driven TypeElectric
Power1-3kw
Voltage220V
Warranty1year
Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Driven Type Electric
Power 1-3kw
Voltage 220V
Warranty 1year
Digital Yes
Weight 70 to 150 Kgs
Automatic Grade Automatic

Digital Rockwell Hardness Testing Machine that rolls off our manufacturing unit is fabricated from quality materials to test a wide range of metals and alloys. The machine is set under the supervision of experts and as per the client’s specific requirements. It features an LED bar indicator, which is used for setting the position and ease the operation. Its larger display and convenient handling makes it user friendly. We are emerging as the promising Manufacturer and Supplier of Digital Rockwell Hardness Testing Machine in Maharashtra.
Features :

Motorized for automatic operation cycle i.e. load / dwell / unload
Preliminary Test Force - 98.07N (10 kgf.)
Additional Test Force - 490.3, 882.6, 1373N (50, 90, 140 kgf.)
Total Test Force - 588.4, 980.7, 1471N (60, 100, 150 kgf.)
Test Force selection by external dialing
Set position with LED bar indicator for easy operation
Key board entry through reliable membrane switches for scale / GO-NOGO / dwell time selection
Large size scale display for easy reading with 0.1 Rockwell resolution
Parallel output for connecting dot matrix printer to get results indicating serial number of tests, hardness scales, hardness value and high / good / low indication

Principal :

Rockwell, Rockwell superficial & Rockwell cum Brinell tests consists of forcing an indentor (Diamond or Ball) into the surface of a test piece in two steps i.e. first with preliminary test force and thereafter with additional test force and then measuring depth of indentation after removal of additional test force (Remaining preliminary test force active) for measurement of hardness value.
SSS-RASNE series machines are suitable for Rockwell, Rockwell superficial & Rockwell cum Brinell tests. These are motorized digital Hardness testers having LCD display for easy hardness measurement. The results are displayed in 0.1 Rockwell unit for more accurate measurement.

Operation :

Various parameters of test can be set on front panel by operation of key board and observing LCD display Viz high/low limits, dwell time, auto/manual start, printer selection, scale selection etc. All set data can be verified edited by pressing SCL key one after another.
Machine operation is very simple. The normal mode is a bar followed by "SET" indication. Raise elevating screw slowly through bar indication till "SET" position which will show "PRESS START" indication. Now press "START" button. Loading/unloading cycle will be completed and hardness is shown on LCD display with High/Good/Low indication. Lower down elevating screw. Panel will show normal mode for next test. Also when required 'AUTO START' on front panel by operation of key board & observing LCD Display then raise elevating screw slowly through bar indication till "SET" position then it will starts loading/unloading cycle automatically & hardness is shown on LCD Display with High/Good/Low indication.

For Brinell scale - manually select (187.5 or 250 kgf) with respected ball indentor. At that time take reference of set point only. Apply the load, then measure the impression dia by Brinell microscope only. (No Brinell scale display on screen).

NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Technical Data

MODEL	UNIT	SSS-RASN(E)	SSS-RASN(T)(E)	SSS-RASN(B)(E)
MAJOR LOAD	N (KGF)	588.4, 980.7, 1471 (60, 100, 150)	147.1, 294.2, 441.3, 588.4, 980.7, 1471 (15, 30, 45, 60, 100, 150)	588.4, 980.7, 1471, 1839, 2452 (60, 100, 150, 187.5, 250)
MINOR LOAD	N (KGF)	98.07 (10)	29.42, 98.07 (3, 10)	98.07 (10)
MAX.TEST HEIGHT	MM	230	230	230
DEPTH OF THROAT	MM	133	133	133
NET WT. APPROX.	KG.	75	77	77
M/C DIMENSIONS	MM	L-450, W-175, H-627	L-450, W-175, H-627	L-450, W-175, H-627

NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Digital Hardness Tester

MODEL	SSS-RASN(E)	SSS-RASN(T)(E)	SSS-RASN(B)(E)
TYPE	DIGITAL ROCKWELL	DIGITAL ROCKWELL & ROCKWELL SUPERFICIAL	DIGITAL ROCKWELL CUM BRINELL
OPERATION CYCLE	AUTOMATIC LOAD/DWELL/UNLOAD	AUTOMATIC LOAD/DWELL/UNLOAD	AUTOMATIC LOAD/DWELL/UNLOAD
PRELIMINARY TEST FORCE	98.07N (10 KGF)	29.42N (3KGF) & 98.07N (10KGF)	98.07 N (10KGF)
ADDITIONAL TEST FORCE	490.3, 882.6, 1373N (50, 90, 140 KGF)	177.7, 264.8, 441.9, 490.3, 882.6, 1373N (12, 27, 42, 50, 90, 140 KGF)	490.3, 882.6, 1373, 1471, 2354N (50, 90, 140, 177.5, 240 KGF)
TOTAL TEST FORCE	588.4, 980.7, 1471N (60, 100, 150 KGF)	141.7, 294.2, 441.3, 588.4, 980.7, 1471N (15, 30, 45, 60, 100, 150 KGF)	5800.4, 980.7, 1471, 1839, 2452N (60, 100, 150, 187.5, 250 KGF)
TEST FORCE SELECTION	BY EXTERNAL DIALING	BY EXTERNAL DIALING	BY EXTERNAL DIALING
SET POSITION	WITH LCD BAR INDICATOR	WITH LCD BAR INDICATOR	WITH LCD BAR INDICATOR
KEY BOARD ENTRY	THROUGH MEMBRANE SWITCHES FOR SCALE, GO-NO GO & DWELL TIME SELECTION	THROUGH MEMBRANE SWITCHES FOR SCALE, GO-ON GO & DWELL TIME SELECTION	THROUGH MEMBRANE SWITCHES FOR SCALE, GO-ON GO DWELL TIME SELECTION
RESOLUTION	0.1 ROCKWELL	0.1 ROCKWELL OR 0.1 ROCKWELL SUPERFICIAL	0.1 ROCKWELL

Standard Accessories

MODEL	SSS-RASN(E)	SSS-RASN(T)(E)	SSS-RASN(B)(E)
TESTING TABLE 50MM DIA.	1	1	1
TESTING TABLE 38MM DIA. WITH 'V' GROOVE FOR ROUND JOBS 6-45 MM DIA.	1	1	1
DIAMOND INDENTOR	1	1	1
STEEL BALL INDENTOR 1/16" WITH 5 SPARE BALLS	1	1	1
STEEL BALL INDENTOR 2.5 MM WITH 5 SPARE BALLS	-	-	1
TEST BLOCK ROCKWELL "C"	1	1	1
TEST BLOCK ROCKWELL "B"	1	1	1
TEST BLOCK HB 2.5 / 187.5	-	-	1
TEST BLOCK HR 30 N	-	1	-
ALLEN SPANNERS	5	5	5
SCREW DRIVER	1	1	1
WOODEN BOX FOR STD. ACCESSORIES	1	1	1
POWER CABLE	1	1	1
BRINELL MICROSCOPE	-	-	1
INSTRUCTION MANUAL	1	1	1
