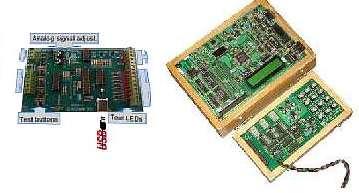

Digital signal processor trainervpl-dsp5xspecificationstms 320c50 cpu with crystal oscillator of 40.00mhzenhanced tms320 architectural design for increased performance and versatilitymodular architectural design for fast development of spinoff devicesadvanced ic processing technology for increased performancedownward source-code compatibility with ‘c1x and ‘c2x dsps for fast and easy performance upgradesenhanced tms320 instruction set for faster algorithms and for optimized high-level language operationnew static design techniques for minimizing power consumption and maximizing radiation hardness64 kb ram and 32 kb monitor50 pin bus containing address/data and control signal to connect experimental board and for future expansion.interface14 bit codec single channel, input/output voice quality analoginterface. 1 single chip d/a and a/d conversion with 14 bits of dynamic rangevariable sampling rate and filtering 2’s complement data format single 5v supply serial port interface.terminal i/o port is rs 232 compatible.3 timer/counter using 825412 bit single channel dac using 7541.12 bit single channel adc using ad574.on board ppi 8255.on board mike and speaker circuit16x2 lcd interface.84 keys ascii pc keyboard interface.commandsuser can use various commands to access tms320c5x, likeregister examine/modifyexamine/modify data/program memoryblock move data/program memoryfill block of data/program memory with constantbreakpoint commandfull speed executionupload/download from computer with main board & lab board, user can do following experiments :add two (64 bit signed) numbers and store result.multiply two (32 bit) numbers and store result.echo out an audio signaladd two numbers and store resultadd "echo" to audio signalgenerates a sinusoidal signala-law compandorgenerate a pseudo random binary sequence.80 tap fir low pass filter10th order iir filterspeech ("vowel") recognitiondata that corresponds to a 941hz sinusoidal signal.data that corresponds to a 1477hz sinusoidal signal.with descriptive manual specifying various steps in the form of lessons to follow to learn about dsp and its application with programmes.lab project boardseveral lab project boards are available which are compatible with the dsp tutor board. The lab project board covers a variety of different subjects such as speech recognition, image processing, instrumentation, communication and multimedia.dsp trainer kitsall about dsp trainer kits are designed to train students and speed the development of power-efficient applications based on ti’s dsps. The kit, which provides new performance-enhancingfeatures such as pc communications and true plug-and-play functionality, gives both experienced and novice designers aneasy way to get started.the dsp kits offers the ability to detect, diagnose and correct communication issues, download and step through code faster and get a higher throughput with real time data exchange(rtdxtm).vpl-dsp-5416 dsp trainer kitthe contents of the package include:tms320c5416 boardcode composer studio - trial packageconnection cable through pcrequired power supplyquick start guideexperimental manual with examplestechnical referencelab project - experimental interfacevpl-dsp-5402 dsp trainer kitthe contents of the package include:tms320c5402 boardcode composer studio - trial packageconnection cable through pcrequired power supplyquick start guideexperimental manual with examplestechnical referencelab project - experimental interface.vpl-dsp-6713 dsp trainer kitthe contents of the package include:tms320c6713 boardcode composer studio - trial package.connection cable through pcrequired power supplyquick start guideexperimental manual with examplestechnical referencelab project - experimental interface.daughter boards to supplement your development boards add new functionality to your ti or third party dsp developmentboard. Evaluate a wide range of data converters, prototype boards, new i/o interfaces and many other peripheral devices.these compliant cards will allow you to connect with dsks and some ti evms seamlessly via common connectors (tms320cross-platform daughtercard specification). Other cards that are not compliant may require glue logic or special cabling to work with ti dsp development boards.usb experimental boardvpl-8055the vpl-8055 interface board has 5 digital input channels and 8 digital output channels. In addition, there are two analogue inputs and two analogue outputs with 8 bit resolution. Thenumber of inputs/outputs can be further expanded by connecting more (up to a maximum of four) cards to the pc’s usbconnectors.all communication routines are contained in a dynamic link library (dll) 8055d.dll. You may write custom windows (98se, 2000, me, xp) applications in delphi, visual basic, c++ builder or any other 32-bit windows application development tool that supports calls to adll.features5 digital inputs (0= ground, 1= open). On board test buttons provided.2 analog inputs with attenuation and amplification option. Internal test +5v provided.8 digital open collector output switches (max 50v/100ma). On board led indication.2 analog outputs 0 to 5v, output resistance 1k5pwm 0 to 100% open collector outputs max 100ma / 40v. On board led indication.general conversion time: 20ms per commandpower supply through usb aprx. 70ma.diagnostic software and communication dll includedminimum system requirementspentium class cpuusb1.0 or higher connectionwindows 98se or higher (win nt excluded)cd rom player and mouse.
