Digital Sleeve Cutting Machine – AWS 120

Digital Sleeve Cutting Machine – AWS 120
Overview

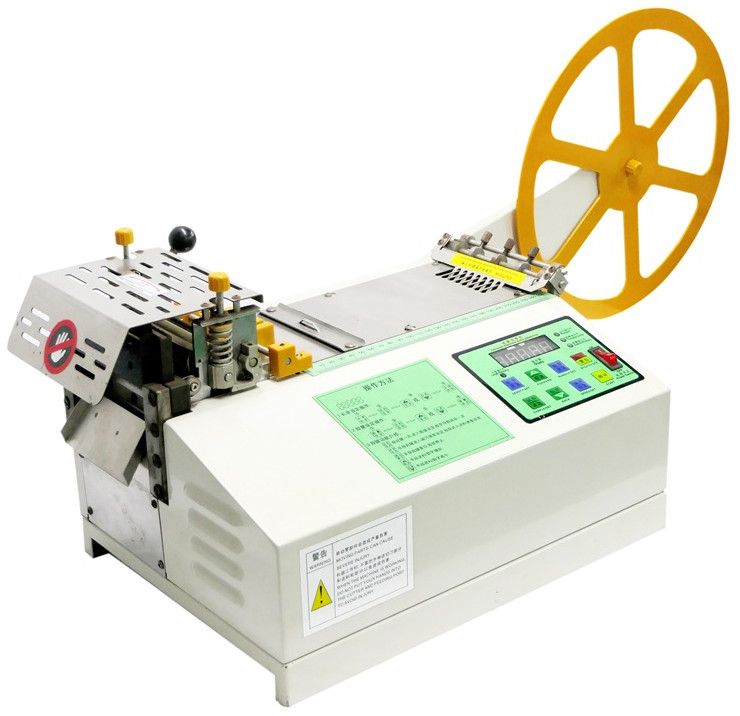

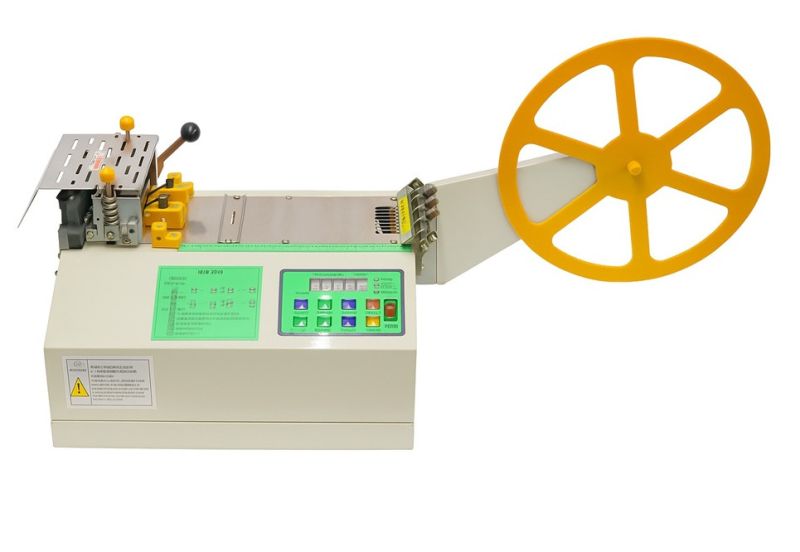

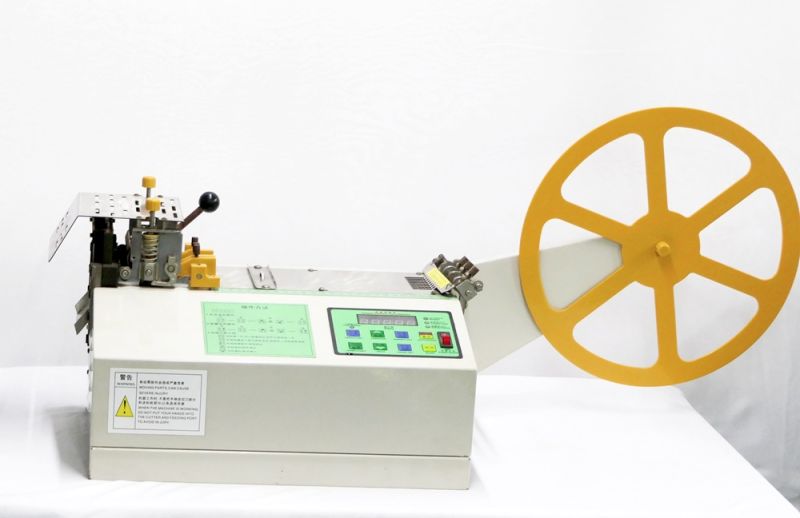

The AWS 120 Digital Sleeve Cutting Machine by Estovir Technologies is a stepper motor-driven system engineered for precision cutting of sleeves, tubing, and cables. It efficiently processes PVC sleeves, nylon sleeves, heat-shrink tubing, flat ribbon cables, and shielding wires with reliable, repeatable accuracy.

With a range of 0.1–9999.9 mm in length and up to 120 mm width, it delivers flexibility for diverse industries. The digital control panel enables quick setup, reduces waste, and ensures consistency. Compact and durable, AWS 120 is ideal for electronics, wiring harnesses, and assembly lines.

Material Compatibility & Range

• PVC Sleeves – insulation and bundling.

• Nylon Sleeves – abrasion-resistant harnessing.

• Heat-Shrink Tubing – reliable insulation for joints.

• Flat Ribbon Cable – PCB and connector applications.

• Shielding Wire – EMI/RFI protection.

• Cutting length: 0.1–9999.9 mm | Cutting width: 0.1–120 mm

Key Features
1. High Precision & Performance

• Wide Cutting Range – 0.1–9999.9 mm length, 120 mm width.

• Stepper Motor Drive – Consistent accuracy.

• High-Speed – Up to 3000 cycles/hour.

2. Versatile Material Compatibility

• Cuts PVC, nylon, heat-shrink, ribbon cable, shielding wire.

• Handles round and flat profiles.

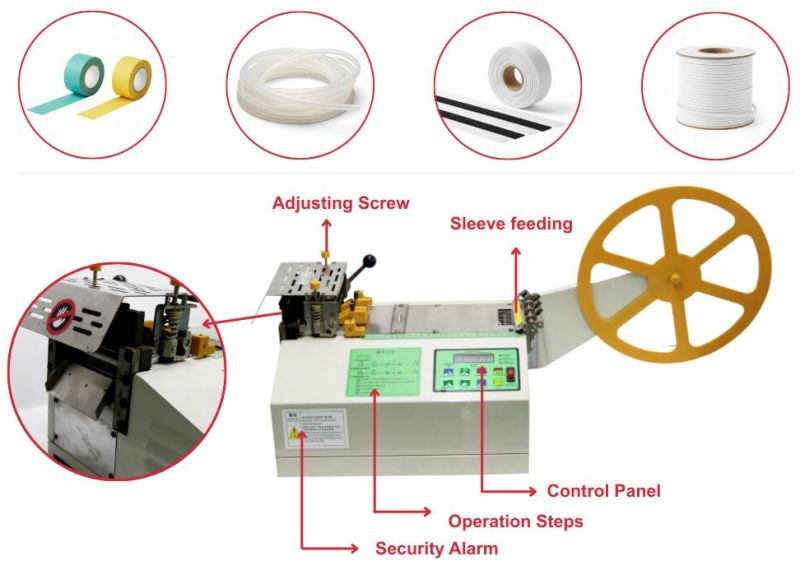

3. Ease of Use & Digital Control

• Digital Panel – Fast setting of length/quantity.

• Simple Operation – Reduces operator fatigue.

4. Compact, Durable & Low Maintenance

• Size: 400 × 300 × 260 mm | Weight: 29 kg.

• Energy Efficient: 220V AC, 50 Hz, 100W.

• Minimal upkeep vs. manual cutting.

5. Ergonomic & Operator-Friendly

• Portable, lightweight build.

• Ergonomic layout reduces handling effort.

• Integrated safety features.

6. Reliable & Cost-Effective

• Consistent Output – Reduces waste.

• Saves Time & Labor – High productivity.

• Backed by Estovir Technologies' expertise.

Applications

The AWS 120 is a multi-industry solution for precise and repeatable sleeve cutting.

• Electronics – Cutting sleeves/tubing for PCB wiring.

• Wire Harness Production – Consistent lengths for auto/industrial harnesses.

• Aerospace & Defense – Accuracy in mission-critical wiring.

• Consumer Electronics – Boosts output in mass production.

• Training & R&D Labs – Compact, user-friendly, and reliable.

Why Choose AWS 120?

The AWS 120 offers precision, durability, and productivity designed for modern cutting needs.

• Unmatched Accuracy – Stepper motor precision.

• High Productivity – Up to 3000 cycles/hour.

• Material Versatility – Cuts sleeves, tubing, ribbon, shielding wire.

• Low Maintenance & Energy Efficient – Built for long service.
