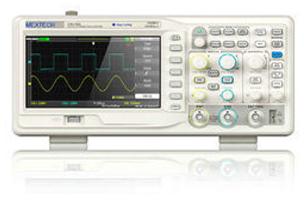

Digital Storage Oscilloscope

Features and Benefits:

• Memory Depth: 40Kpts, 5Kpts/CH (SDS1202CNL)
• 6 digits hardware frequency counter, real time counting display
• Support SCPI programming command control
• Interface: USB Device, USB Host, RS-232, Pass/Fail
• Unique digital filter and data recorder function
• Embedded 12 languages, online help, one key storing and one key printing
• Up to 25MHz Bandwidth 1GSa/s sample rate
• 7’TFT-LCD display, 8*18 grids
• Channels: 2CH 1EXT

Characteristic:

• The highest Single real-time sampling rate can be up to 500MHzsa/s; Equivalent sampling rate is up to 50GSa/s.
• Memory Depth: 32Kpts
• Trigger types: Edge, Pulse Width, Video, Slope, Alternative
• Unique Digital Filter function and Waveform recorder function
• Support Pass/Fail function.
• Thirty two parameters Auto measure function.
• Save/recall types: Setups, Waveforms, CSV file, Picture.
• Support Multilingual On-line help system
• Waveform Intensity and Grid Brightness can be adjusted.
• Support twelve types Language
• Standard Configuration Port
• USB Host: Support USB flash driver save/recall function and update firmware;
• USB Device: Support PictBridge compatible printer and support PC remote control;
• Pass/Fail Output.
