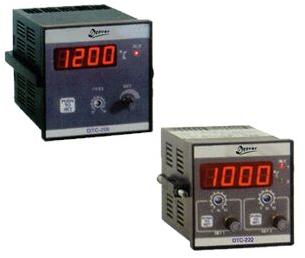

| Display | 3 1/2 Digital 7 Segment Red colour 0.5" ht |
| Cold Junction Compensation | Auttomatic For T/C |
| Sensor Input | J, K, R, S, T/C, PT-100 RTD, mV, V & 4-20 mA I/P |
| Accuracy | J, K 1%, R, S, 0.5%, PT-100 RTD 0.2%, mV, V, mA 0.1% |
| Sensor open Indication | By '1' at MSD |
| Set Point | Multiturn Trimpot for each set point. |
| Hyst Pot | 1 to 10 0c for each set point for ON- OFF Model |
| Tune Pot | ±5 °C for each set point for Time Proporational Model |
| Control Action | ON/ OFF or Time Proporational |
| Control Output | 6 Amp or 20 Amp. 1 c/o Relay, 230 V.A.C., 12 V. DC. pulse o/p for S.S.R., for each set point |
| Operating Temperature | 0-50 °C (RH < 80%) |
| Supply | 230 V.A.C. ±10% 50 Hz |
| Dimensions (H x W x D) | 96 x 96 x 120 mm | 72 x 72 x 110mm |
| Panel Cutout (H x W) | 92 x 92mm | 68 x 68 mm |
