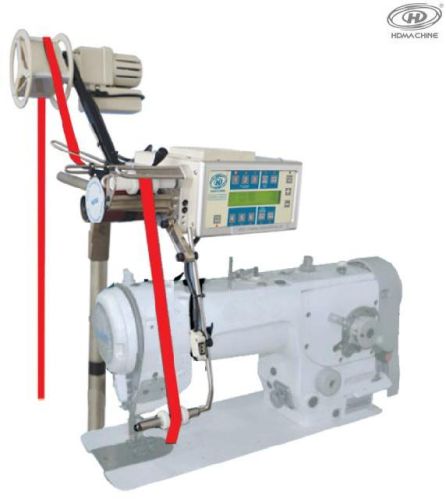

Digital Tensioning Metering Device

We are offering digital tensioning metering device. Tension type computerized metering device for upper feed only. The main unit, control box and panel are all together as one.
Industrial cpu chipset and all new operating system make metering device work more stably and precisely.
Smart touch panel displays sensitivity according to changing tension.
It can feed six different sensitivities and adjust elastic automatically by setting tension and stitch. With compact figuration, fashion appearance and easy-operation, it’s the best sewing supplement for underwear manufacturer.
Parts description
free tape switch
this switch prevents elastic tape pulled backwards when the operation stops.
Led section display
it indicates the current section by led display
led display and manual section changing controller
this tiny display shows the current section and manual section changing controller allows operator change different section by finger.
Synchronizer
the part is fixed in the belt pulley. It’s used for stitch counting and section changing.
suspended switch for free tape function
for overlock and coverstitch sewing machine use only
specification
product name
digital tensioning device upper type
model no.
Hde6
memory program
6 sections, 26 memory program
tension adjusting
1~999
sensitivity adjusting
1~99
stitch counting
blank or 1~999
base mounted way
operation table
max speed
5500rpm
max width
65mm
power supply
ac 220v 50hz
standard parts
free tape switch, led section display
optional parts
synchronizer, led manual section controller, suspended switch
