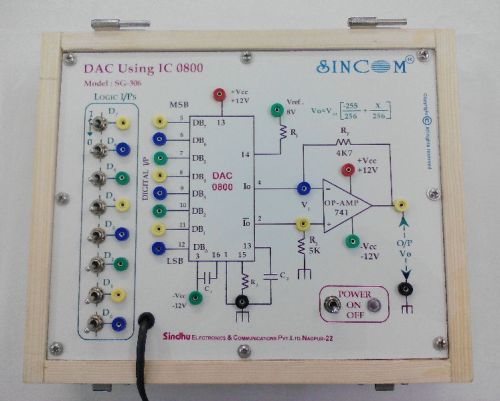

Digital To Analog (D To A) Using IC 0800 SG-306

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The trainer has on board DC +5V,±12V fixed Power supply, Digital TTL Logic Level Generator (8 No). On board DAC IC 0800 wired with Op-Amp and resistive network to study the Digital to Analog....

View More Details

Send Enquiry

Company Information

SINCOM Sindhu Electronics & Communications Pvt. Ltd.

Pratap Nagar, Nagpur, Maharashtra

View Number

Member Since 8 Years
Nature of Business Retailer
GST No. 27AANCS0623H1ZC

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

The trainer has on board DC +5V,±12V fixed Power supply, Digital TTL Logic Level Generator (8 No). On board DAC IC 0800 wired with Op-Amp and resistive network to study the Digital to Analog Converter (DAC) and verify its truth table. On board 8 bit Digital Input, Reference input, Analog Output. Facility to change Digital Input and observe the corresponding Analog outputs.
Objectives :

To Study Concept of Digital to Analog Converter.
To Study Digital to Analog (D-A) converter using IC 0800 and verify its truth table.
To Observe and note the change in Analog Outputs w.r.t. change in Digital Inputs.

Accessories Included : Set of Patch Cords, Operating Manual.
