Safe overload150% of full scale (display shows “OVER” at 110% and above)
Accuracy±0.5% of full scale
Battery LifeBacklight on
Sampling rate2,000 Hz
Measurement unitslbFin, ozFin, kgFmm, Ncm (depending on model)
Weight1.8 lb [0.8 kg]
USB OutputConfigurable to 115,200 baud
Backlight offup to 24 hours of continuous use
PowerAC or rechargeable battery. Multi-step low battery indicator is displayed

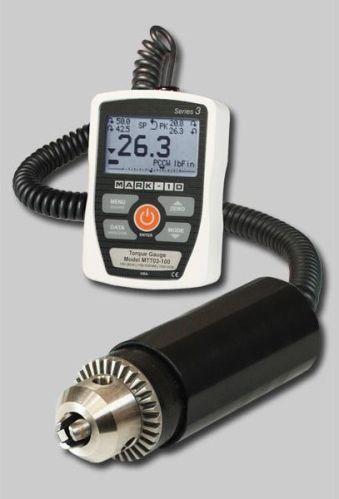

TT03 digital torque gauges are designed for clockwise and counter-clockwise torque testing applications in virtually every industry, with capacities from 10 ozFin to 100 lbFin (7 to 1,150 Ncm). A dedicated remote torque sensor with Jacobs chuck can be used to grip a sample, bit, or fixture. The gauges’ rugged aluminum housing allows for hand-held use or test stand mounting for more sophisticated testing requirements.
Series TT03 features a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. USB output is provided for data collection purposes.
Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.
The gauges include MESUR™ Lite data acquisition software, for tabulation of continuous or individual data points. One-click export to Excel allows for further data manipulation.
Features :
Ergonomic torque sensor with Jacobs chuck
Peak torque values saved and displayed
High-speed 2,000 Hz sampling rate
USB data output of continuous or individual data points
Programmable set points with pass/fail indicators
Live load bar graphs with set point markers
Peak memory for clockwise and counter clockwise readings
Set points always displayed
Configurable audio alarms and key tones
MESUR™ Lite data collection software included
Battery or AC operation
Safe overload: 150% of capacity
CE mark
