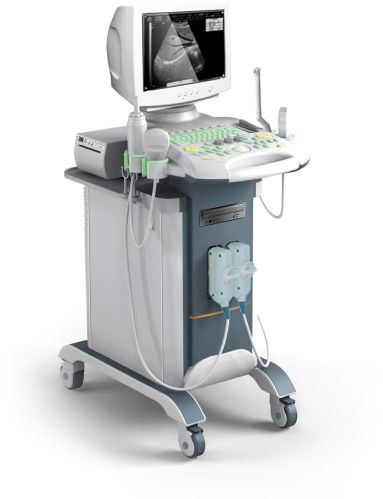

Digital Ultrasound, Brand Name : RuiHua

we are offering digital ultrasound. * full digital beam former technology
* nc real-time dynamic frequency aperture imaging
* nc dynamic scanning technology
* nc real-time dynamic multi-point focusing
standard configuration
main unit 1pc
3.5mhz electronic convex probe with multi-frequency
14’’ digital black/white monitor
optional configurations:
6.5mhz intracavitary probe
7.5mhz high frequency linear probe
black/white laser printer
functions:
supporting output: 2 usb mobiles devices; video out digital, video printer, vga, r232
monitor: 14’’ high resolution non-interlaced monitor
probe connector: 2
imaging process: pre-processing, post-processing, dynamic range, frame coorelation, line coorelation, adge enhancement, left/right turn, black/white turn, up/down turn, gray scale, gray scale curve, brightness, γrectification, noise reducing.
gain adjustment: range: 0-100db, 8 segment tgc, b mode, m mode
testing & calculating:
. b mode conventional measurement: distance, area, volume, circumference, angle, histogram, section map, hip angle
. m mode conventional measurement: hr, time, slope
. general detection: liver, biliary system, kidney, pancreas, spleen
. gynecology detection: ovary, cervix, endometrial, ovarian, follicle, cysts, mass
. obstetricia detection: 14 kinds obstetricia(ac, bpd, crl, fl, thd, gs, ofd, humerus, tidia, ulna, hc, tad, aptd, fta) testing the gestational age, fetus weight, afi
. depth index and fetal physiology score reports and fetal growth curve
. heart detection: left ventricle detection, left ventricle function, aortic, mitral valve
. urology detection: left kidney volume, right kidney volume, residual urine volume, prostate volume
. small organs detection: ophthalmonogy, thyroid, maxillofacial
. other detection: adding other organs detection as per customer’s request.
real-time zoom and the magnification: ×1.5, ×2.0, ×2.5, ×3.0, ×3.5, × 4.0, × 4.5, × 5.0, × 5.5, × 6.0.
meeting specific ergonomic design and operating habits key arrangement
intelligent navigation function, a key to achieve
intelligent focusing control, synchronously display, backlight function gel keyboard
powerful clinical practical function
detection analysis software of all departments
arbitrary partial marker real-time or offline
b, b/b, b+m, m, 4b partial enlargement
online case management check, convenient for contrast on clinical application
scanning angle could be adjusted
real-time dynamic playback, synchronously displaying body markers added into the report.
powerful report editing function and large quantity of report storage. (optional)
