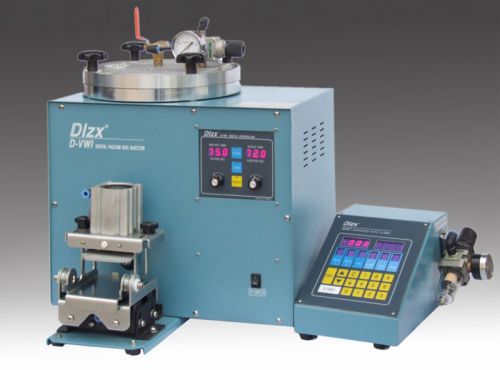

Digital Vacuum Wax Injector For Jewelry

We are offering digital vacuum wax injector for jewelry.
1. Digital vacuum wax injector
power supply: ac230v,50/60hz,
single phase power: 450va(max),
compressed air range: 0.30-0.70mpa,
temperature display range: 40-99.9?,
setting time range for vacuum: 0-25 seconds,
setting time range for wax injection: 0-25 seconds,
setting time range for warming the machine:0-99hours,
wax capacity:3.5kg,
temperature precision:+/-0.1?,
dimensions:450(w)*310(d)*450(h)mm,
weight:23kg.
features:
as the wax mold is injected with wax under vacuum, the filling optimization and thin wax is also very easy to inject. It can control the temperature of wax cavity and wax mouth separately and show with digital for ensuring the correct temperature when wax injection. Heating standby time setting function, the work can be started as soon as wax injection operations, saving both time and electricity, but also improves the work efficiency.
2 auto-clamp:
power supply:ac 230v,50/60hz,single phase
power:50va
compressed air range:0.25-0.30mpap
pessure displayed range:0-240kpa
setting range:
1) one time inject (press1):10-220kpa;
2) two times inject (press2):10-220kpa;
3) two times inject and add pressure time for begining(time):0-3 seconds;
4) clamp pressureclamp):30-235kpa;
5)forward pressure(forward):65-235kpa;
6)holding time(hold):0-300 seconds;
program numbers setting range:setting item 0-9
times of injecting range:9999 times
dimensions:1)auto-clamp:157(w)*223(h)mm
2)control panel:160(w)*260(d)*145(h)mm
weight:1)auto-clamp:about 5kg
2)control panel:about 3kg
features:put the rubber mold to the auto-clamp, input the program number, and press the start button, and then clamp the mold, go forward, automatic target wax injection at the mouth, vacuum, injection wax casting, clamp open etc, all auto finished.
Can be any combination of press1,press2,time?clamp,hold,forward.
