Contact SupplierWe are offering Digital Vibration Tester.

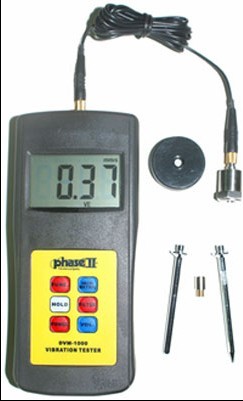

DVM-1000
Phase II now brings Vibration meters into the fold of our instrumentation line with the introduction of the State-of-the-art DVM-1000 Vibration Meter.
The multi-fucntional vibration meter will measure Velocity, Acceleration, Displacement, and RPM. Full frequency ranges are utilized for broad detection abilities.
Feature laden, the DVM-1000 Vibration Meter doesn�t pull any punches, offering statistics, inchmetric conversion, hold function, and more!!
Features:
Quick accurate analysis for checking balance and alignment of a rotating object.
Large LCD display
Statistics: Mean, Max, MIN, No. Of Measurements and Std deviation
InchMetric Conversion with the push of a button
Max Hold Function
Regulated Output(AC output 2.0v peak full scale
Specifications: Acceleration Peak Value: 0.1 � 200 ms
or 0.3-656 ftms Frequency Range: 10Hz-1KHz
Frequency Range: 10Hz-10KHz
Velocity(RMS) RMS: 0.1-400 (mms)
or 0.004 -16.0 inchs Frequency Range: 10Hz-1KHz
Displacement Peak to Peak 0.001 � 2.0(mm)
or 0.04-80mil Frequency Range: 10Hz-500Hz
RPM (revolution) 5-100,000 rmin
Frequency 0.1 � 10KHz
Accuracy.
